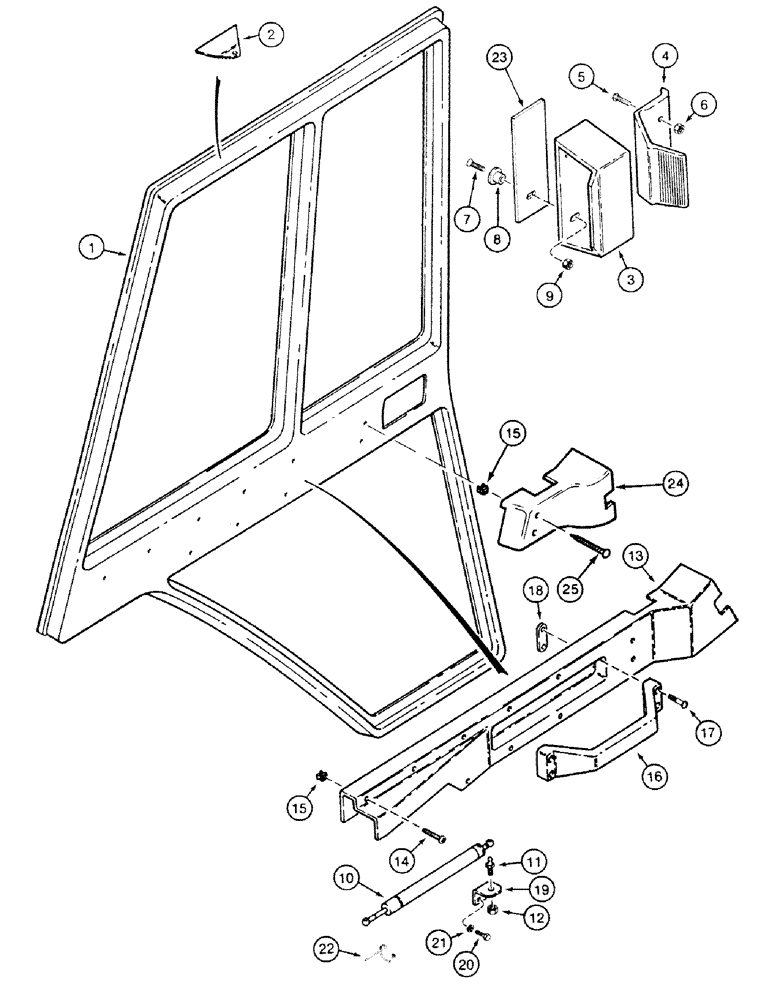

Запчасти Case 580SK (9-194) - LEFT AND RIGHT CAB DOORS - INTERIOR (09) - CHASSIS/ATTACHMENTS

1

97402C2

DOOR

FRAME Left With : 2 See Figure 9-190

1шт.

1

97401C2

DOOR

FRAME Right With : 2 See Figure 9-190

1шт.

2

R53562

BRACKET

1шт.

3

97399C1

HANDLE

1шт.

4

97398C1

LOCK ASSY

LATCH

1шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

6

86625057

NUT,#10-24, GB

2шт.

7

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

No. 10 x 19 mm

2шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Black

2шт.

9

86625057

NUT,#10-24, GB

2шт.

10

E45902

GAS STRUT

CYLINDER

1шт.

11

1340345C1

BALL STUD

BALL PIN STUD

1шт.

12

230-4215

NUT,5/16"-18, GA

1шт.

13

1344034C2

PANEL

Left, Serial Range: -JJH0045451

1шт.

13

108938A1

PANEL

Left, Start Serial: JJH0045452

1шт.

13

1344033C2

PANEL

Right

1шт.

13

108936A1

PANEL

Right, Start Serial: JJH0045452

1шт.

14

187-371

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

No. 10 x 38 mm Black

10шт.

15

R53000

GROMMET

RETAINER

10шт.

16

1958970C1

HANDLE

Inner

1шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

1/4 x 19 mm

4шт.

18

1971368C1

PLATE ASSY.

RETAINER

2шт.

19

1977399C1

SUPPORT ASSY.

1шт.

20

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

2шт.

21

492-11025

LOCK WASHER,1/4"

2шт.

22

E46492

CLIP

1шт.

23

R54047

PAD,30mm OD x 0.76mm Thk

SHIM

1шт.

24

108938A1

PANEL

Left, Start Serial: JJH0045452

1шт.

24

108936A1

PANEL

Right, Start Serial: JJH0045452

1шт.

25

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

, Start Serial: JJH0045452

2шт.
