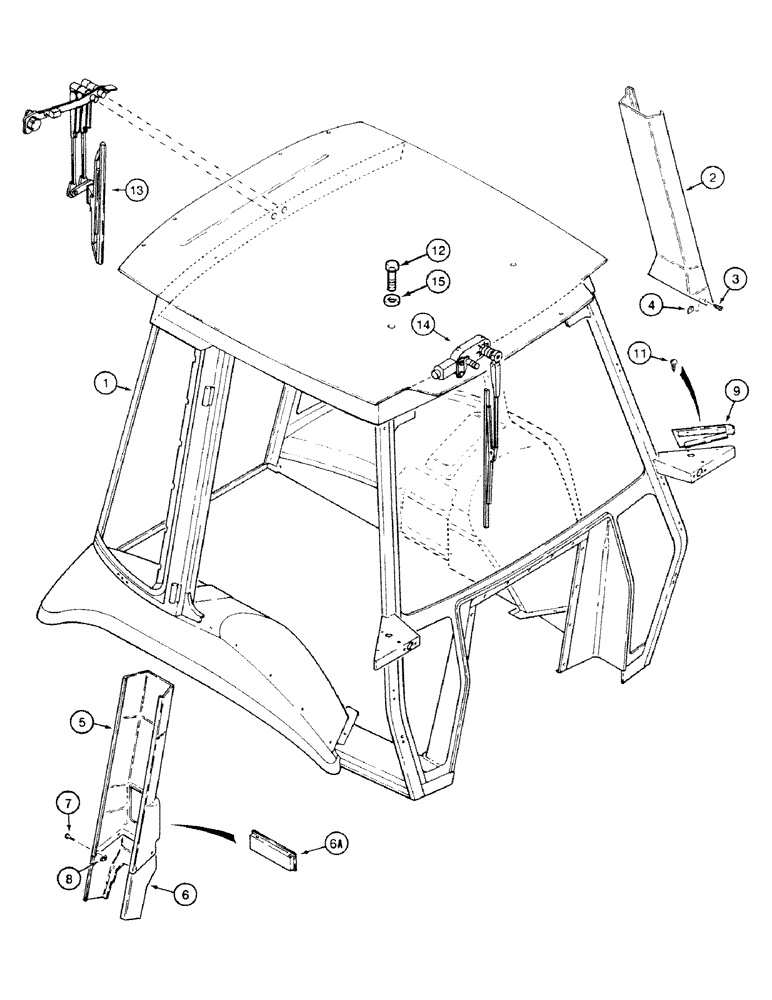

Запчасти Case 580SK (9-184) - CAB FRAME AND COVERS, WITHOUT PLASTIC ROOF CAP (09) - CHASSIS/ATTACHMENTS

1

FRAME

1шт.

2

187424A1

ARMREST

COVER Grey

1шт.

2

E46940

ARMREST

COVER Tan Links

1шт.

3

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

No. 10 x 19 mm

2шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

5

187423A1

ARMREST

COVER Grey

1шт.

5

E46926

ARMREST

COVER Tan Upper, Right

1шт.

6

187424A1

ARMREST

COVER Grey

1шт.

6

E46934

COVER ASSY

Tan Lower, Right

1шт.

6a

E46632

SUPPORT

1шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

No. 10 x 19 mm

4шт.

8

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

9

E45954

COVER

Left

1шт.

9

E45955

COVER

Right

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

No. 8 x 19 mm

6шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

13

WIPER Rear See Figure 4-80

1шт.

14

WIPER Front See Figure 4-78

1шт.

15

495-21056

WASHER,1/2"

4шт.
