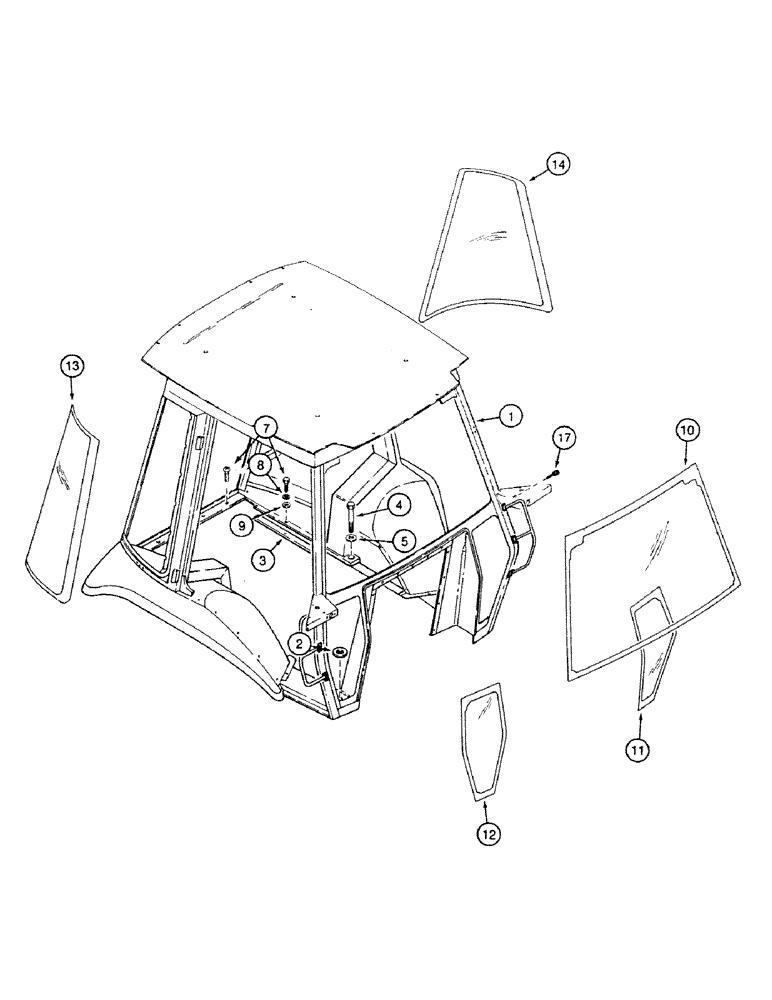

Запчасти Case 580SK (9-182) - CAB (09) - CHASSIS/ATTACHMENTS

1

CAB See Figures 9-182 - 9-218

1шт.

2

495-81259

WASHER,21/32" x 2" x .238"

5/8"

2шт.

3

E49743

BAND

SEAL 2845 mm

2шт.

4

26-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

7/8 x 82 mm

4шт.

5

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

7/8"

4шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

8

492-11031

LOCK WASHER,5/16"

8шт.

9

495-11034

WASHER,5/16", SAE

8шт.

10a

E48349

WINDSHIELD

Glass Front

1шт.

Tinted

1шт.

11a

E48353

GLASS

Front, Left

1шт.

Tinted

1шт.

12a

E48352

CAB GLASS ASSY

Front, Right

1шт.

Tinted

1шт.

13a

E48350

GLASS

Rear, Right

1шт.

Tinted

1шт.

14a

E48351

GLASS

Rear, Left

1шт.

Tinted

1шт.

17

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

5/16 x 19 mm

3шт.

3404053R91

PACKAGE

Repair

1шт.
