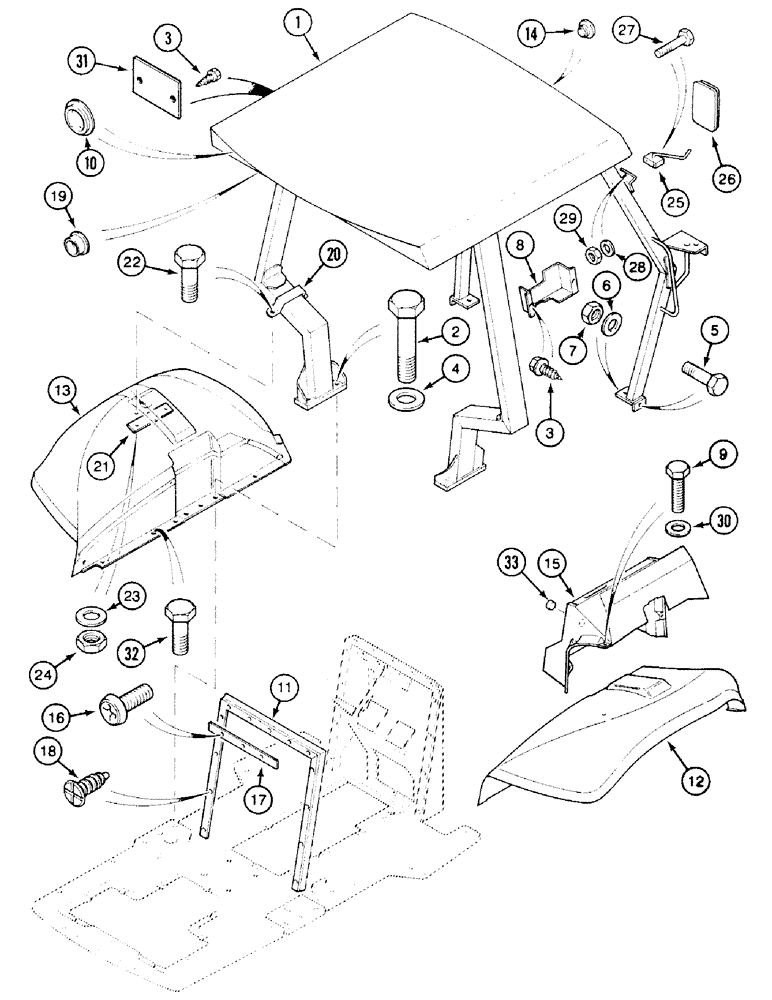

Запчасти Case 580SK (9-180) - ROPS CANOPY AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

E48371

PROTECTOR

SPARE PART FRAME

1шт.

2

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

7/8 x 83 mm

4шт.

3

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

No. 10 x 10 mm

14шт.

4

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

7/8"

4шт.

5

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

2шт.

8

D132337

COVER

1шт.

9

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

10

D93716

PLUG,73.mm ID x 88.9mm OD

76 mm

6шт.

11

D132290

SEAL

1шт.

12

1975935C1

FENDER

Right

1шт.

13

1975934C1

FENDER

Left

1шт.

14

353-405

PLUG,Dome, .562" hole, Nylon

9/16"

8шт.

15

187417A1

BRACKET

CONSOLE Grey

1шт.

15

117647A1

BRACKET

CONSOLE Tan

1шт.

16

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16 x 19 mm

3шт.

17

D143659

PLATE

1шт.

18

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER

4шт.

19

353-417

PLUG,Dome, 2.000" hole, Nylon

2"

8шт.

20

D136652

BRACKET

2шт.

21

D136653

PLATE

2шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

1977494C1

HOLDER

RETAINER

2шт.

26

E46543

MIRROR

2шт.

27

171-220

SCREW,Sl Flat Hd, 5/16" - 18 x 7/8"

5/16 x 23 mm

4шт.

28

492-11031

LOCK WASHER,5/16"

4шт.

29

425-105

NUT,5/16"-18, G5

4шт.

30

195-81026

WASHER,.266" x 13/16" x .079"

3/16"

6шт.

31

E48883

LARGE PLATE

SPARE PART

6шт.

32

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

33

353-413

PLUG,Dome, 1.187" hole, Nylon

1шт.
