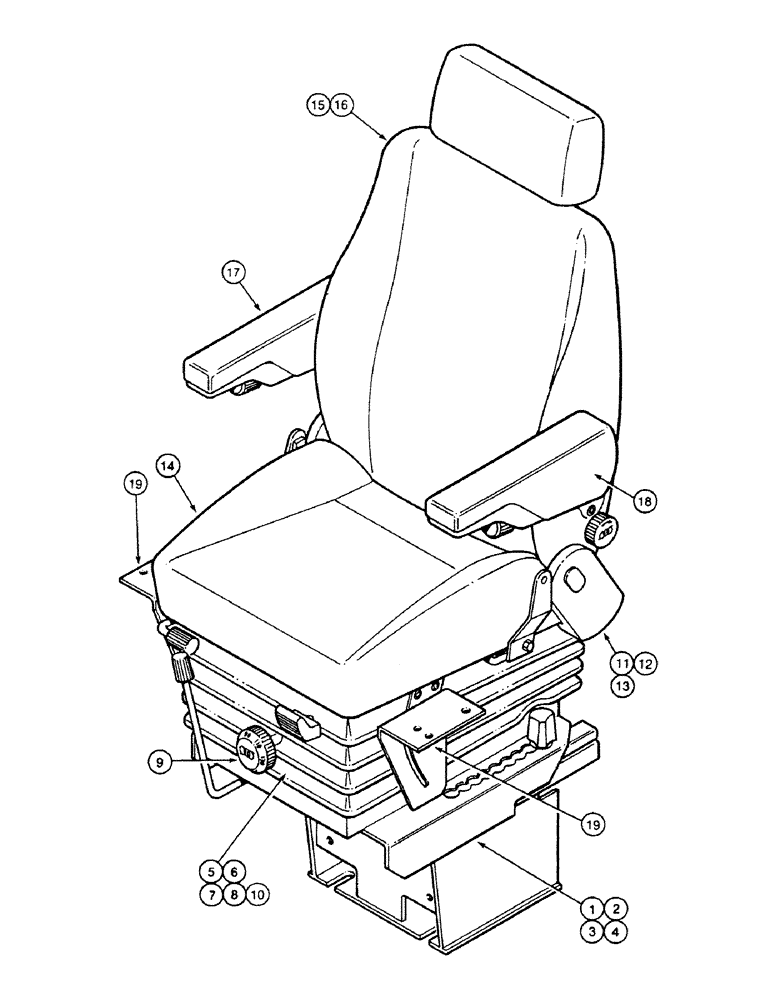

Запчасти Case 580SK (9-162) - DELUXE SUSPENSION SEAT ASSEMBLY - (6000/575), S/N JJH0048690 TO JJH0050328 (09) - CHASSIS/ATTACHMENTS

189160A1

SEAT ASSY.

Cloth, Grey, Start Serial: JJH0050329

1шт.

142812A1

SEAT ASSY.

Cloth,Tan Consists of : 1 - 16

1шт.

189161A1

SEAT ASSY.

Vinyl,Grey, Start Serial: JJH0050329

1шт.

142817A1

SEAT ASSY.

Vinyl,Tan Consists of : 1 - 16

1шт.

189162A1

SEAT ASSY.

Servo Version Grey, Start Serial: JJH0050329

1шт.

142813A1

SEAT ASSY.

Servo Version Tan Consists of : 1 - 19

1шт.

1

180409A1

PACKAGE

KIT See Figure 9-166

1шт.

2

180410A1

PACKAGE

KIT See Figure 9-166

1шт.

3

180411A1

PACKAGE

KIT See Figure 9-166

1шт.

4

180412A1

PACKAGE

KIT See Figure 9-166

1шт.

5

180413A1

PACKAGE

KIT See Figure 9-154

1шт.

6

130624A1

PACKAGE

KIT See Figure 9-154

1шт.

7

130625A1

PACKAGE

KIT See Figure 9-154

1шт.

8

130626A1

PACKAGE

KIT See Figure 9-154

1шт.

9

130627A1

PACKAGE

KIT See Figure 9-154

1шт.

10

180414A1

PACKAGE

KIT See Figure 9-170

1шт.

11

180415A1

PACKAGE

KIT See Figure 9-170

1шт.

12

180416A1

PACKAGE

KIT See Figure 9-170

1шт.

13

180417A1

PACKAGE

KIT See Figure 9-170

1шт.

13

183801A1

PACKAGE

KIT Use With : 142813A1 See Figure 9-170

1шт.

14

180418A1

PACKAGE

KIT Cloth See Figure 9-172

1шт.

14

180424A1

PACKAGE

KIT Vinyl See Figure 9-172

1шт.

15

180419A1

PACKAGE

KIT Cloth See Figure 9-172

1шт.

15

180425A1

PACKAGE

KIT Vinyl See Figure 9-172

1шт.

16

180439A1

PACKAGE

KIT See Figure 9-172

1шт.

17

180420A1

PACKAGE

KIT See Figure 9-172

1шт.

18

180421A1

PACKAGE

KIT See Figure 9-172

1шт.

19

180422A1

PACKAGE

KIT See Figure 9-172

1шт.
