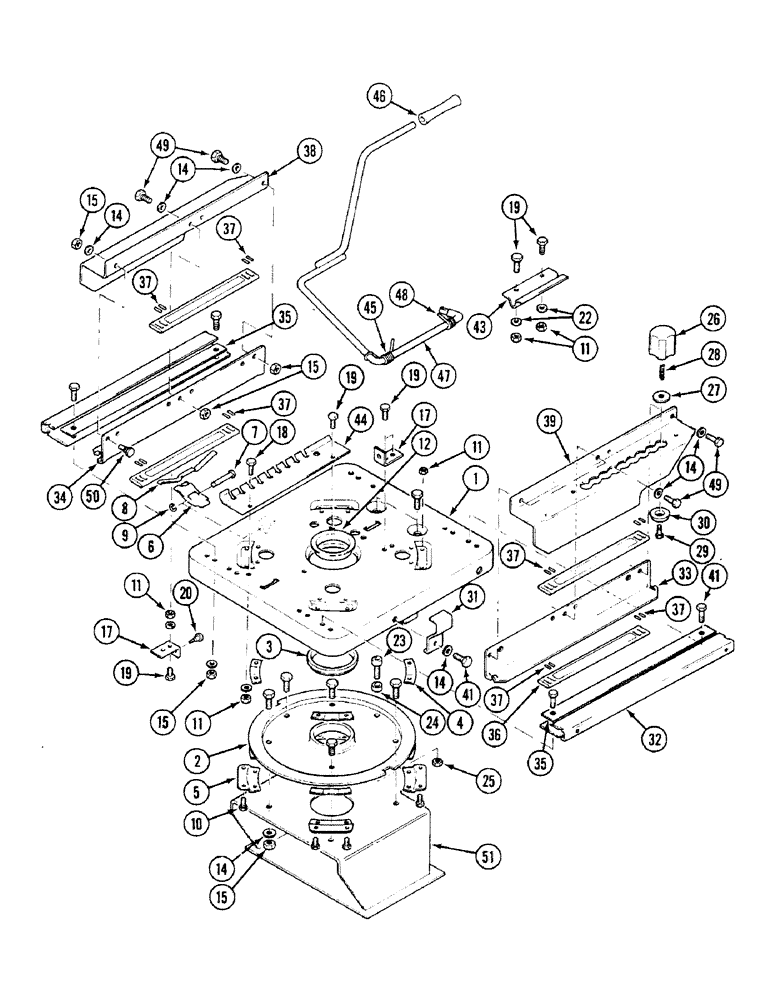

Запчасти Case 580SK (9-148) - DELUXE SUSPENSION SEAT (6000/003), UP TO S/N -JJH0048689 (09) - CHASSIS/ATTACHMENTS

110600A1

SEAT ASSY.

Prestige Version

1шт.

110599A1

SEAT ASSY.

Consists of : 1 - 44

1шт.

130620A1

PACKAGE

KIT Consists Of : 1 - 15,23,24,25

1шт.

130621A1

PACKAGE

KIT Consists Of : 3,4,10,11,12

1шт.

130622A1

PACKAGE

KIT Consists Of : 11,13,14,15,17 - 20,22,26 - 39,41,43 - 49

1шт.

183481A1

PACKAGE

KIT Consists Of : 13 - 17,20,22,23,26 - 32,35 - 50

1шт.

134461A1

PACKAGE

KIT Consists Of : 13,14,32 - 37,41,49

1шт.

1

PLATE

1шт.

2

E46406

PLATE ASSY.

DISC

1шт.

3

E42117

BUSHING

1шт.

4

E42118

PAD

8шт.

5

E42119

SUPPORT

RETAINER

4шт.

6

D145432

LEVER

1шт.

7

D145433

PIN

M6 x 40 mm

1шт.

8

D145434

SPRING

1шт.

9

E45120

RING

Retaining

1шт.

10

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

11

832-10406

NUT,M6 x 1, Cl 8

8шт.

12

RING

1шт.

13

825-1406

NUT,M6, Cl 8

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

17

D145390

STOP

BRACKET

2шт.

18

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 12 mm

9шт.

20

D145391

SHOCK ABSORBER

STOP

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

24

E42389

SPACER

WASHER

1шт.

25

E44769

NUT

1шт.

26

D145395

BALL KNOB

1шт.

27

D145397

WASHER

1шт.

28

NLS

NO LONGER SERVICED

1шт.

29

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

1шт.

30

D145398

WASHER

1шт.

31

D145485

STOP

SPARE PART PLATE

1шт.

32

D145378

SLIDE

2шт.

33

D145382

SLIDE

1шт.

34

D145382

SLIDE

1шт.

35

D145379

GUIDE

2шт.

36

D145486

ROD

CAGE

4шт.

37

D145381

ROLL

16шт.

38

D145492

DOOR COVER

Right

1шт.

39

D145491

DOOR COVER

Left

1шт.

41

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

43

D145396

LARGE PLATE

PLATE, LARGE

1шт.

44

D145384

RAIL

1шт.

45

D145404

SPRING

1шт.

46

D145389

BOOT

1шт.

47

LEVER

1шт.

48

D145387

SPRING

1шт.

49

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

50

D145484

PIN

8 mm

2шт.

51

139615A1

PEDESTAL

Use With : 110600A1

1шт.

51

D145482

PEDESTAL

Use With : 110599A1

1шт.
