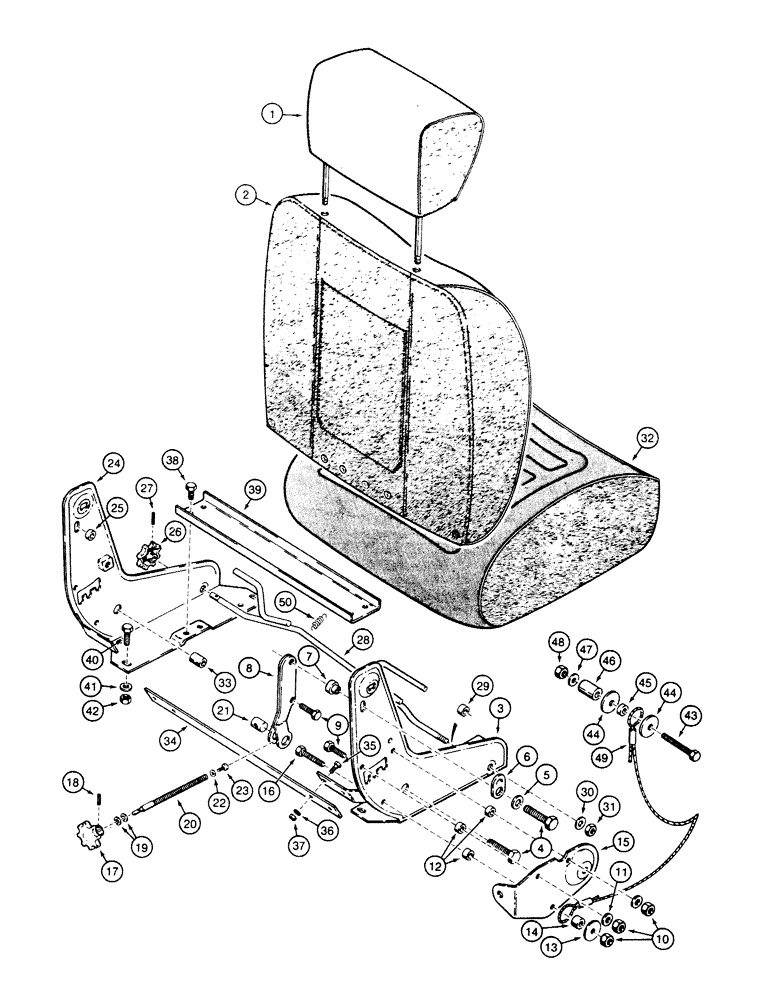

Запчасти Case 580SK (9-132) - DELUXE SUSPENSION SEAT ASSEMBLY (NS03), NOT FOR PRESTIGE (09) - CHASSIS/ATTACHMENTS

D142093

SEAT ASSY.

Cloth See Figure 9-136, 9-140, 9-144 Consists of : 1 - 49

1шт.

141981A1

PACKAGE

KIT Consists of : 4 - 12,15,19 - 23,25 - 31,50

1шт.

141976A1

PACKAGE

KIT Consists of : 4 - 12,15,19 - 23,25 - 31

1шт.

141982A1

PACKAGE

SEAT ASSY Consists Of : 2 - 42,50 See Figure 9-130

1шт.

1

D145489

HEADREST, SEAT

HEADREST If So Equipped

1шт.

141978A1

PACKAGE

SEAT ASSY Vinyl Consists Of : 2 - 42

1шт.

D145483

SEAT

Cloth Consists of : 2 - 39

1шт.

2

130632A1

PACKAGE

CUSHION Vinyl

1шт.

2

D145495

BACKREST

CUSHION Cloth

1шт.

3

D145496

FRAME

Right

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

D145531

LARGE PLATE

PLATE, LARGE

2шт.

7

D145530

SPACER

SPARE PART Upper, Right

1шт.

8

D145499

ADJUSTER

HEIGHT BRACKET

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

10

D145513

NUT

M8

4шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

E42389

SPACER

4шт.

13

D145429

WASHER

8 mm

2шт.

14

D145400

SPACER

2шт.

15

D145532

SUPPORT

1шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

17

D145522

BUTTON

KNOB

1шт.

18

D145520

PIN, ROLL

4 x 18 mm

1шт.

19

D145518

WASHER

WASHER

2шт.

20

D145525

STEM

ROD

1шт.

21

D145528

NUT

RETAINER

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

23

D145515

BOLT

1шт.

24

D145497

FRAME

Left

1шт.

25

D145498

SPACER

Upper, Left

1шт.

26

D145522

BUTTON

KNOB

1шт.

27

D145520

PIN, ROLL

4 x 18 mm

1шт.

28

D145504

STEM

ROD Use With : D142093

1шт.

29

D145502

SPACER

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

825-1408

NUT,M8, Cl 8

1шт.

32

D145494

CUSHION, SEAT

Cloth

1шт.

32

141977A1

PACKAGE

CUSHION Vinyl With : 4,33

1шт.

33

D145500

SPACER

2шт.

34

D145511

SPACER

STRAP

1шт.

35

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

37

825-1408

NUT,M8, Cl 8

4шт.

38

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

39

D145508

CROSSBAR

CHANNEL

1шт.

40

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

42

825-1408

NUT,M8, Cl 8

4шт.

43

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

44

D145402

WASHER

10 mm

4шт.

45

D145400

SPACER

2шт.

46

D145493

SPACER

32,5 mm

2шт.

47

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

48

D145403

LOCK NUT

M10

2шт.

49

D145490

CABLE

2шт.

50

3216874R1

SPRING

Use With : E47889

1шт.
