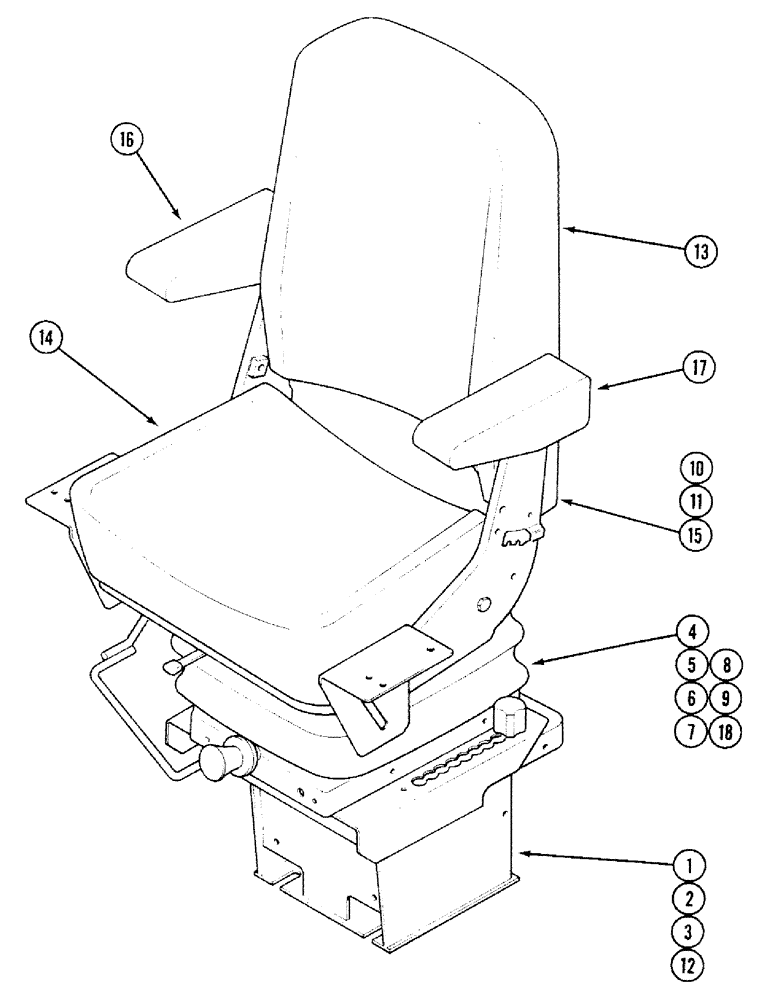

Запчасти Case 580SK (9-130) - DELUXE SUSPENSION SEAT ASSEMBLY, (NS03), PRESTIGE/SERVOPOWER VERSION (09) - CHASSIS/ATTACHMENTS

E47889

SEAT

ASSY Consists of : 1 - 18

1шт.

1

130620A1

PACKAGE

KIT See Figures 9-144, 9-148

1шт.

2

130621A1

PACKAGE

KIT See Figures 9-144, 9-148

1шт.

3

130622A1

PACKAGE

KIT See Figure 9-148

1шт.

4

141970A1

PACKAGE

KIT See Figure 9-136

1шт.

5

141980A1

PACKAGE

KIT See Figure 9-136, 9-140

1шт.

6

141972A1

PACKAGE

KIT See Figure 9-136

1шт.

7

141973A1

PACKAGE

KIT See Figure 9-136

1шт.

8

141974A1

PACKAGE

KIT See Figure 9-136

1шт.

9

141975A1

PACKAGE

KIT See Figure 9-140

1шт.

10

130630A1

PACKAGE

KIT See Figure 9-178

1шт.

11

141981A1

PACKAGE

KIT See Figure 9-132

1шт.

12

141979A1

PACKAGE

KIT See Figure 9-144

1шт.

13

130632A1

PACKAGE

KIT See Figure 9-160

1шт.

14

141977A1

PACKAGE

KIT See Figure 9-134

1шт.

15

141982A1

PACKAGE

KIT See Figure 9-132

1шт.

16

E48669

ARMREST

KIT See Figure 9-178

1шт.

17

E48670

ARMREST

KIT See Figure 9-178

1шт.

18

179075A1

PACKAGE

KIT See Figure 9-138

1шт.
