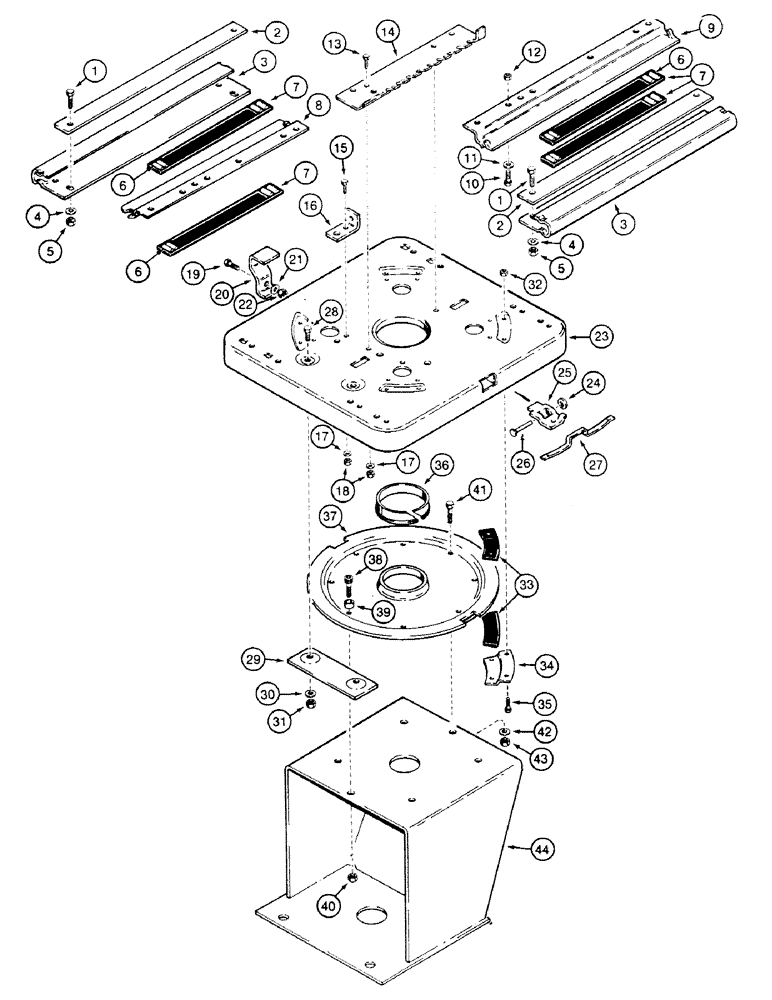

Запчасти Case 580SK (9-126) - STANDARD SUSPENSION SEAT (14MAN.S), NOT FOR PRESTIGE (09) - CHASSIS/ATTACHMENTS

E47201

SEAT ASSY.

Vinyl See Figures 9-116, 9-118, 9-122 Consists of : 1 - 44

1шт.

E46091

SEAT ASSY.

Cloth See Figures 9-116, 9-118, 9-122 Consists of : 1 - 44

1шт.

138700A1

PACKAGE

KIT Consists Of : 23 - 27,32 - 43

1шт.

138701A1

PACKAGE

KIT Consists Of : 32,33,35,36

1шт.

138702A1

PACKAGE

KIT Consists Of : 1 - 22 See Figure 9-122

1шт.

1

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

2

D145379

GUIDE

2шт.

3

D145378

SLIDE

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

825-1408

NUT,M8, Cl 8

4шт.

6

D145381

ROLL

16шт.

7

D145380

CAGE

4шт.

8

D145382

SLIDE

Left

1шт.

9

D145382

SLIDE

Right

1шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

825-1408

NUT,M8, Cl 8

4шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

14

D145384

RAIL

1шт.

15

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

16

D145390

STOP

BRACKET

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

825-1406

NUT,M6, Cl 8

2шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

20

D145377

STOP

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

825-1408

NUT,M8, Cl 8

1шт.

D145374

PLATE

SWIVEL Consists Of : 23 - 37

1шт.

23

PLATE

1шт.

24

E45120

RING

Retaining

1шт.

25

D145432

LEVER

1шт.

26

D145433

PIN

1шт.

27

D145434

SPRING

1шт.

28

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

29

D145435

PLATE

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

31

825-1108

NUT,Hex, M8, Cl 8

2шт.

32

832-10406

NUT,M6 x 1, Cl 8

8шт.

33

E42118

PAD

8шт.

34

E42119

SUPPORT

RETAINER

4шт.

35

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

36

E42117

BUSHING

1шт.

37

E46406

PLATE ASSY.

DISC

1шт.

38

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

1шт.

39

E42389

SPACER

BUSHING

1шт.

40

E44769

NUT

M8

1шт.

41

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

43

825-1408

NUT,M8, Cl 8

5шт.

44

D145373

PEDESTAL

1шт.
