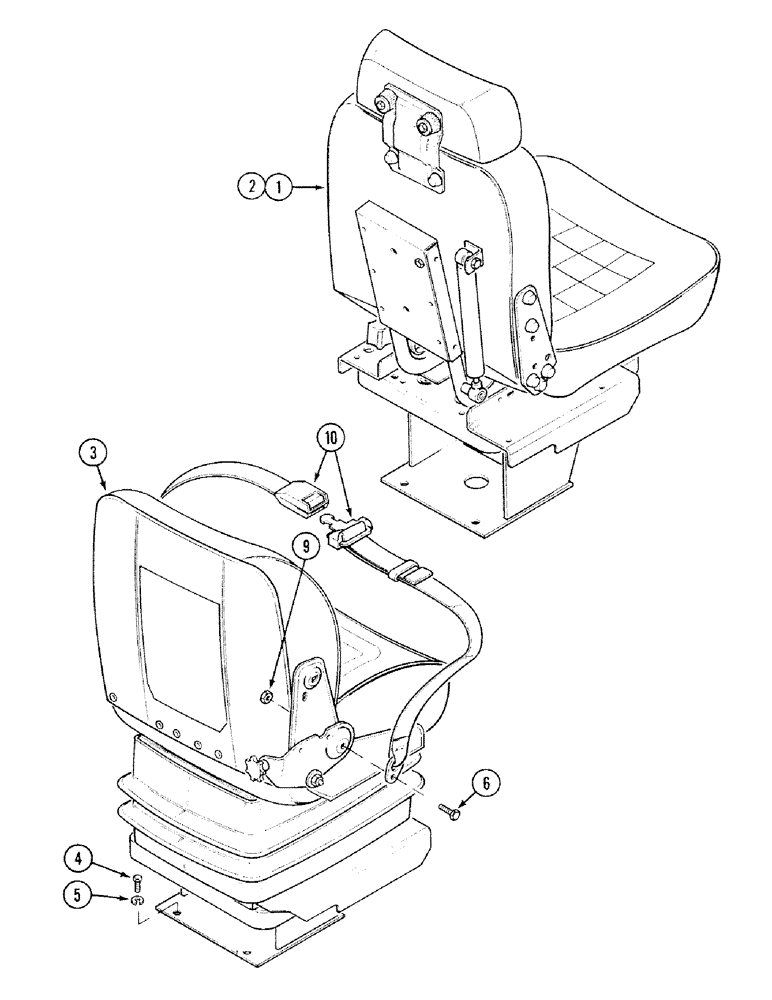

Запчасти Case 580SK (9-116) - SUSPENSION SEAT AND MOUNTING PARTS, NOT FOR PRESTIGE (09) - CHASSIS/ATTACHMENTS

1

E47201

SEAT ASSY.

Standard Vinyl See Figures 9-118 - 9-126

1шт.

2

E46091

SEAT ASSY.

Standard Cloth See Figures 9-118 - 9-126

1шт.

3

110599A1

SEAT ASSY.

De-luxe Cloth See Figures 9-154 - 9-160

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

7/16 x 25 mm

2шт.

9

230-4217

LOCK NUT,7/16"-14, GA

7/16"

2шт.

10

123934A1

SAFETY BELT

1шт.

10

D150010

SAFETY BELT

Australia

1шт.

321-3060

DECAL

Not Shown

1шт.
