(9-114) - REAR CLOSURE PANELS, VERSION WITHOUT ROPS

Запчасти Case 580SK (9-114) - REAR CLOSURE PANELS, VERSION WITHOUT ROPS (09) - CHASSIS/ATTACHMENTS

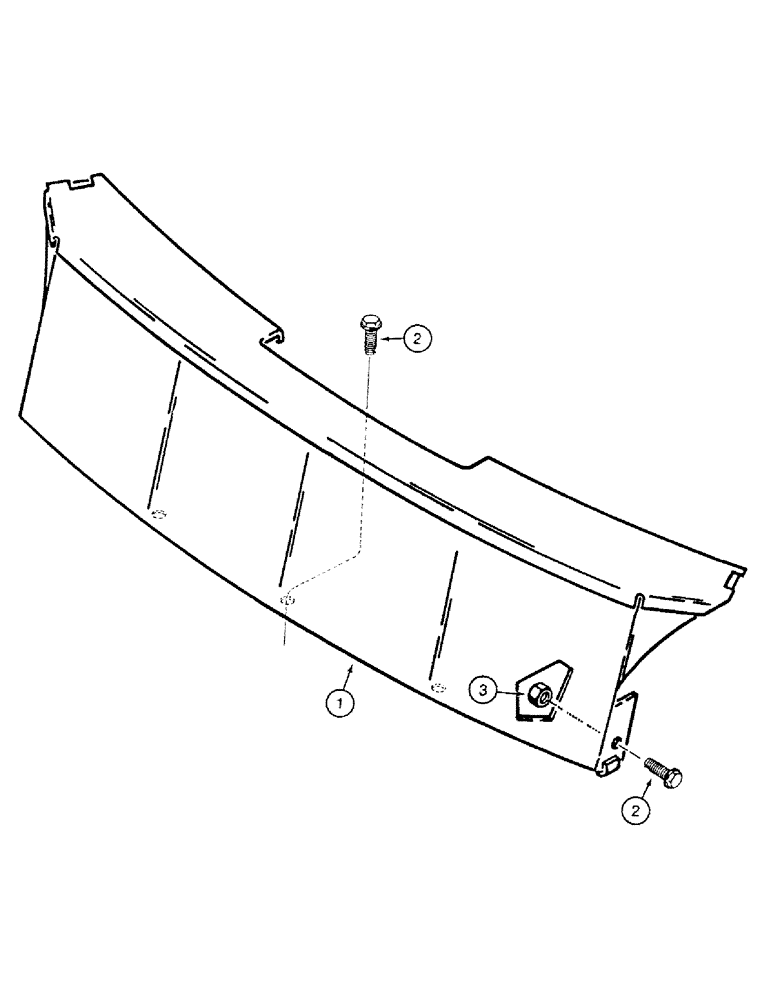

Схема запчастей Case 580SK - (9-114) - REAR CLOSURE PANELS, VERSION WITHOUT ROPS (09) - CHASSIS/ATTACHMENTS
1
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D135244

PANEL

1шт.

2

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

5/16 x 19 mm

7шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.
