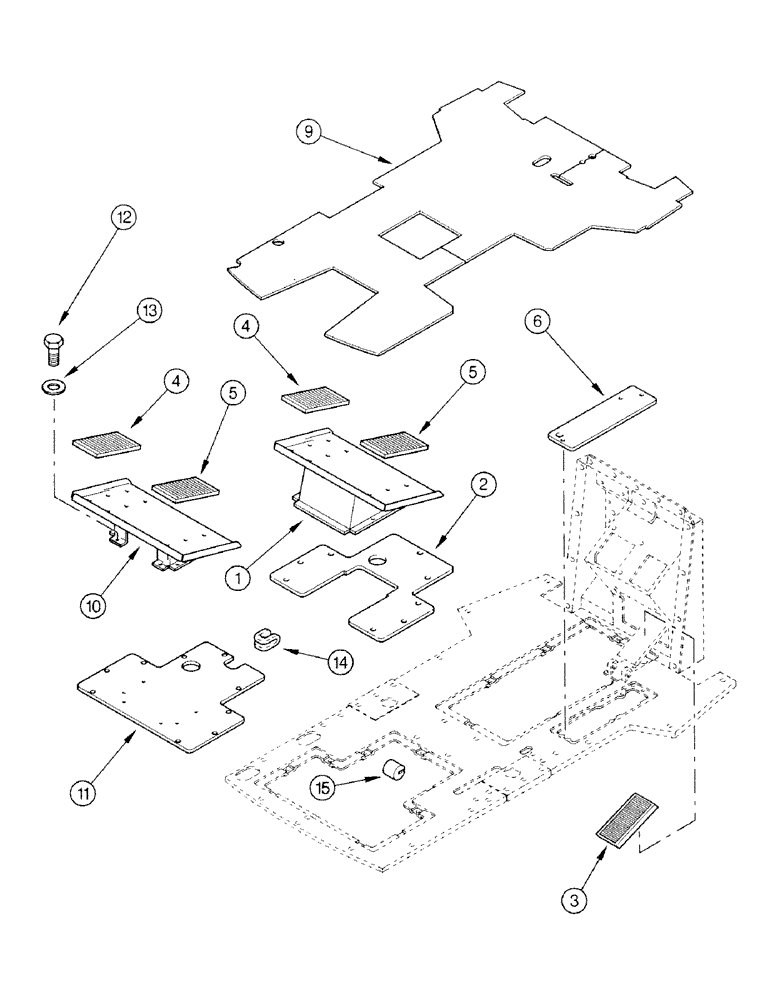

Запчасти Case 580SK (9-112) - CAB, INTERIOR MATS (09) - CHASSIS/ATTACHMENTS

1

E47367

COWLING ASSY

COVER

1шт.

2

E47441

PLATFORM

PLATE

1шт.

3

D137499

COVER

PAD

1шт.

4

D137491

LINING

PAD

1шт.

5

D137492

LINING

PAD

1шт.

6

E49583

COVER

1шт.

9

MAT Servopower Version See Figure 9-110

1шт.

10

115433A1

FOOT REST

PLATFORM Servopower Version, Start Serial: JJH0046382

1шт.

11

115431A1

COVER

PLATE Servopower Version, Start Serial: JJH0046382

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Servopower Version, Start Serial: JJH0046382

6шт.

13

492-11031

LOCK WASHER,5/16"

Servopower Version, Start Serial: JJH0046382

6шт.

14

E48292

GASKET

STRIP Servopower Version, Start Serial: JJH0046382

1шт.

15

E48293

GASKET

STRIP Servopower Version, Start Serial: JJH0046382

1шт.
