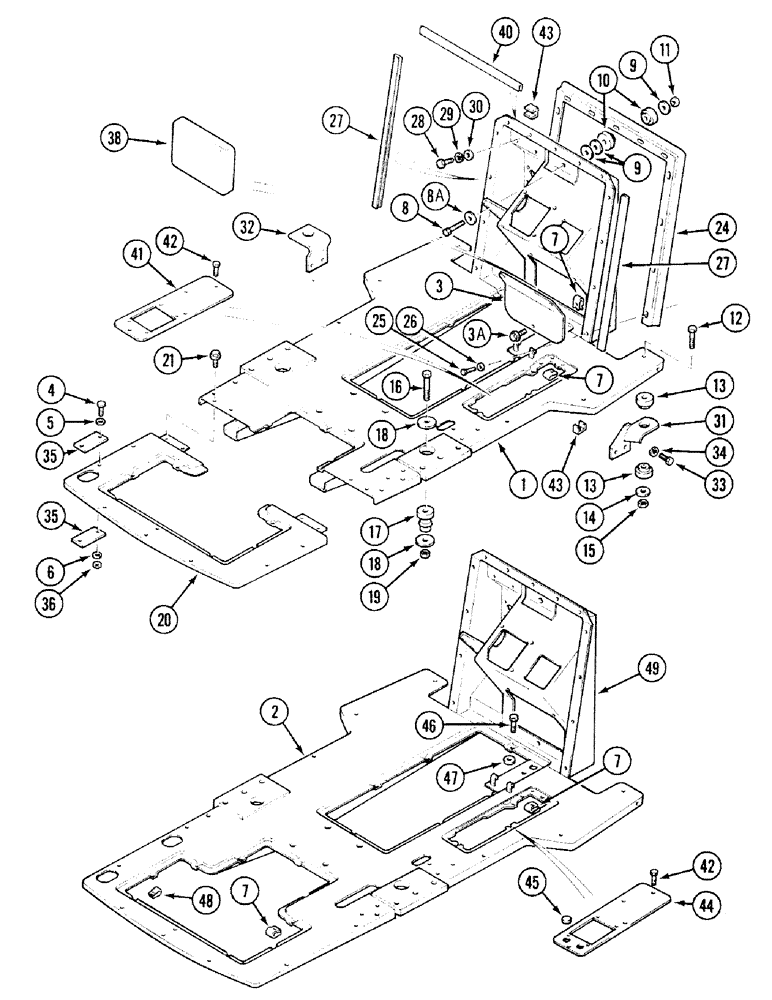

Запчасти Case 580SK (9-106) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D149837
FRAME
Loader Models
1шт.
2
D148470
PLATFORM
FRAME With : 49
1шт.
3
D139180
COVER
PLATE
1шт.
3a
458-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
5/16 x 19 mm
3шт.
4
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
6
195-521
WASHER,5/16", SAE
2шт.
7
131-97
SPRING NUT,Tinn, U, 5/16"-18
5/16"
3шт.
8
426-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8
5/8 x 95 mm
1шт.
8a
D90873
WASHER
1шт.
9
D89007
WASHER
5/8"
3шт.
10
D138565
SHOCK ABSORBER
INSULATOR
2шт.
11
429-1010
NUT,5/8"-11, G8
1шт.
12
426-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 8
2шт.
13
D138565
SHOCK ABSORBER
INSULATOR
4шт.
14
D89007
WASHER
5/8"
2шт.
15
429-1010
NUT,5/8"-11, G8
2шт.
16
113-2642
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8
2шт.
17
A141451
SHOCK ABSORBER
INSULATOR
2шт.
18
D89007
WASHER
5/8"
4шт.
19
429-1010
NUT,5/8"-11, G8
2шт.
20
D141960
PLATFORM ASSY.
FRAME Rear Use With : D149837
1шт.
21
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
4шт.
24
D132290
SEAL
Versions Without Cab
1шт.
25
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
26
195-103
WASHER,5/16"
2шт.
27
E48884
BAND
SEAL 668 mm
1шт.
28
458-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
7шт.
29
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
7шт.
30
195-521
WASHER,5/16", SAE
7шт.
31
D144671
SUPPORT
Front, Right
1шт.
32
E48978
SUPPORT
Front, Left
1шт.
33
426-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
4шт.
34
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
35
D140261
PLATE ASSY.
2шт.
36
9635082
NUT,5/16" - 18, Gr 5
2шт.
38
E48533
LINING
PAD
1шт.
40
E48885
BAND
SEAL 662 mm
1шт.
41
E48908
COVER
PLATE
1шт.
42
461-43116
HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"
5/16 x 25 mm
4шт.
43
1502286C2
NUT,Floating Cage, 5/16"-18
1шт.
44
D149324
PLATE
1шт.
45
205-56
PLUG
32 mm
1шт.
46
413-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
3/8 x 89 mm
1шт.
47
425-106
NUT,3/8"-16, Cl 5
1шт.
48
131-637
SPRING NUT,Ret, J, 5/16"-18
3/8"
2шт.
49
D147176
PROTECTION PLATE
SHIELD
1шт.
Выбрано товаров: 47
