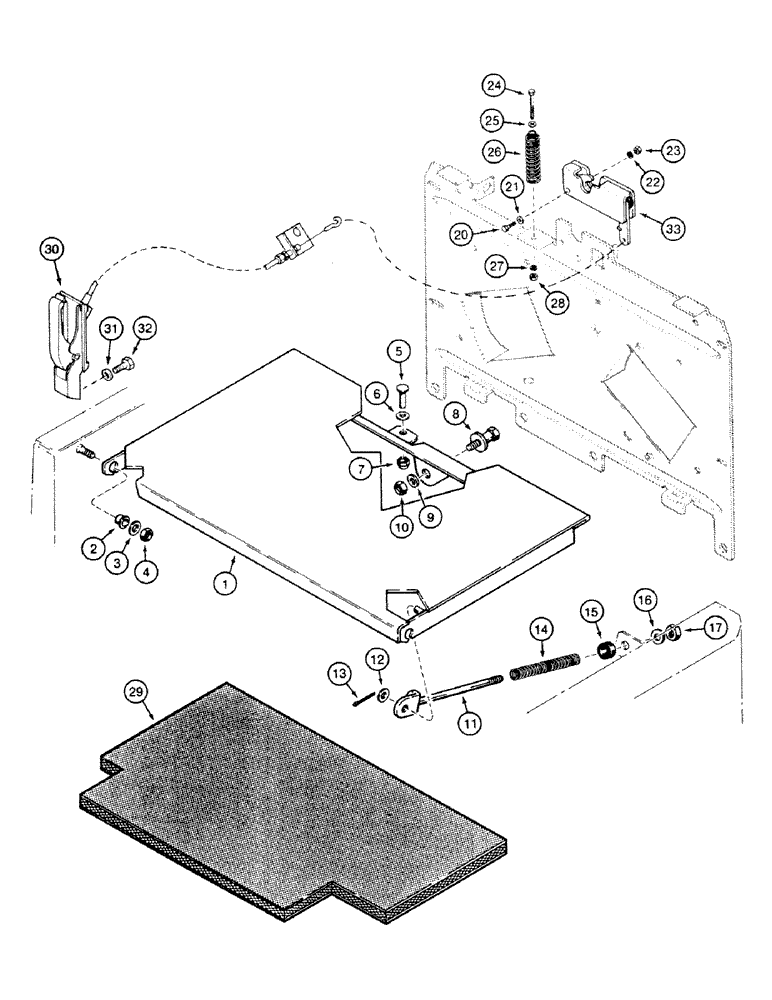

Запчасти Case 580SK (9-102) - UPRIGHT COVER AND HOOD LATCH RELEASE (09) - CHASSIS/ATTACHMENTS

1

D136057

PANEL

COVER

1шт.

2

D134837

BEARING,10 mm ID x 26 mm OD x 8 mm

BEARING

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

4

231-4116

NUT,3/8"-16, GB

3/8"

2шт.

5

427-4077

CLEVIS PIN,1/4" x .770"

1шт.

6

495-11028

WASHER,1/4", SAE

1шт.

7

131-867

PUSH-ON NUT,1/4"-20, Push-on

1/4"

1шт.

8

D136115

LATCH

STRIKER

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

25/64"

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

1шт.

11

D134872

ROD

1шт.

12

495-11034

WASHER,5/16", SAE

1шт.

13

432-68

COTTER PIN,3/32" x 1/2"

1шт.

14

D125336

COIL SPRING

1шт.

15

D125335

BUMPER

1шт.

16

495-11028

WASHER,1/4", SAE

1шт.

17

231-1444

NUT,1/4"-20, GB

1шт.

21

495-21031

WASHER,1/4"

5/16"

2шт.

22

492-11025

LOCK WASHER,1/4"

2шт.

23

425-104

NUT,1/4"-20, Cl 5

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

25

495-11028

WASHER,1/4", SAE

1шт.

26

D136113

SPRING

1шт.

27

492-11025

LOCK WASHER,1/4"

1шт.

28

425-104

NUT,1/4"-20, Cl 5

1шт.

29

E46886

FOAM

PAD

1шт.

30

D144414

LATCH

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

32

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

1шт.

33

D141356

LATCH

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
