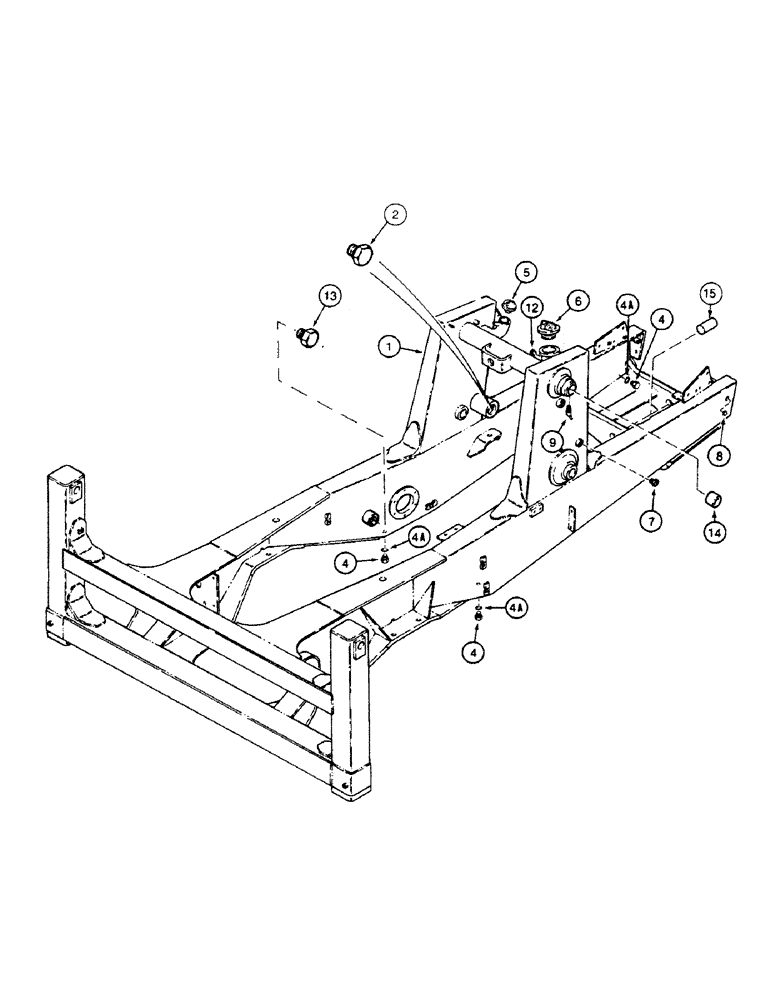

Запчасти Case 580SK (9-094) - CHASSIS, SIDESHIFT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D148188

CHASSIS

, Serial Range: -JJH0013456

1шт.

1

E49787

CHASSIS

With : 2,4,4A, Start Serial: JJH0013457

1шт.

2

E48897

PLUG

1" If So Equipped

1шт.

4

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

1-1/4" With : 4A

3шт.

4a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

E48635

PLUG

CAP Reservoir Fuel

1шт.

6

D93981

FILLER CAP

Reservoir Hydraulic

1шт.

7

D63875

PLUG

GAUGE Hydraulic Oil

1шт.

8

41-1020

PLUG,Cup, 1 1/4"

1-1/4"

2шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

12

N8796

PLUG

BREATHER

1шт.

13

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

PLUG 1-7/8"

1шт.

14

E49768

BUSHING

2шт.

15

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

2шт.
