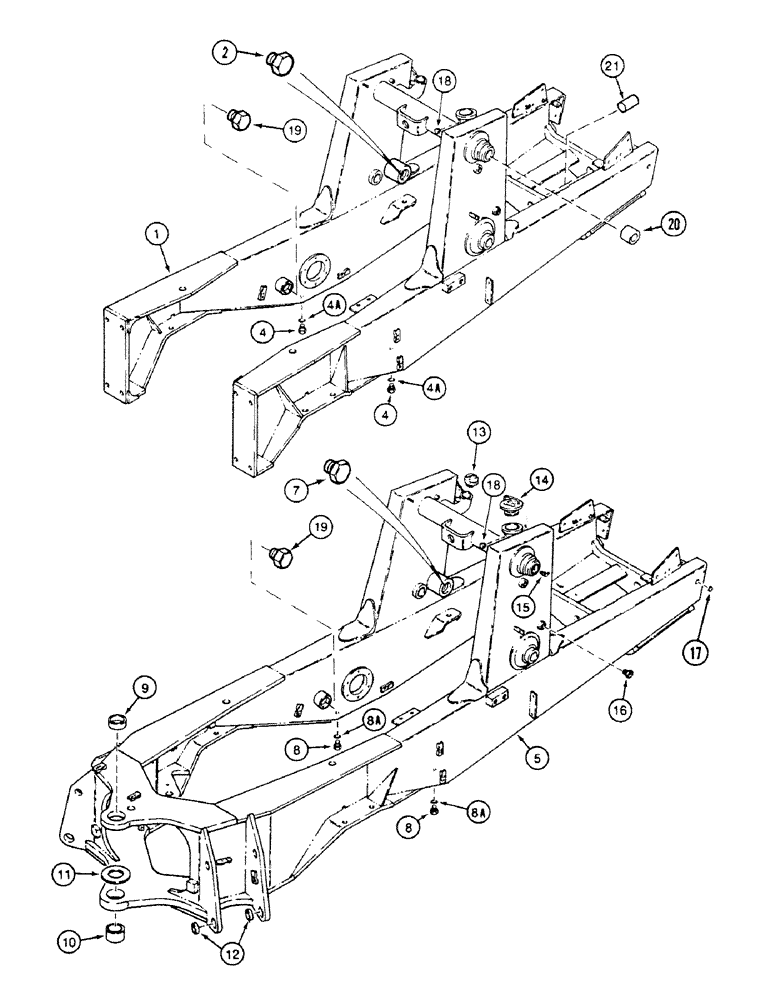

Запчасти Case 580SK (9-092) - CHASSIS, INTEGRAL BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D149743

CHASSIS

, Serial Range: -JJH0013456

1шт.

1

E49792

CHASSIS

Loader-Backhoe With : 2,4,4A, Start Serial: JJH0013457

1шт.

2

E48897

PLUG

1" If So Equipped

1шт.

4

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

1-1/4" With : 4A

2шт.

4a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

E48583

CHASSIS

, Serial Range: -JJH0013456

1шт.

5

E49793

CHASSIS

Integral Backhoe With : 7 - 12, Start Serial: JJH0013457

1шт.

7

E48897

PLUG

1" If So Equipped

1шт.

8

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

1-1/4" With : 8A

2шт.

8a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

D135555

BUSHING,70.19mm ID x 90mm OD x 32mm L

1шт.

10

D135556

BUSHING,70.19mm ID x 90mm OD x 38mm L

1шт.

11

D144112

SPACER

83 x 135 x 6 mm

1шт.

12

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

4шт.

13

E48635

PLUG

CAP Reservoir Fuel

1шт.

14

D93981

FILLER CAP

Reservoir Hydraulic

1шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

16

D63875

PLUG

GAUGE Oil Level

1шт.

17

41-1020

PLUG,Cup, 1 1/4"

1-1/4" dia

2шт.

18

N8796

PLUG

BREATHER

1шт.

19

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

PLUG 1-7/8" dia

1шт.

20

E49768

BUSHING

2шт.

21

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

2шт.
