(9-088) - FRONT COUNTERWEIGHT

Запчасти Case 580SK (9-088) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

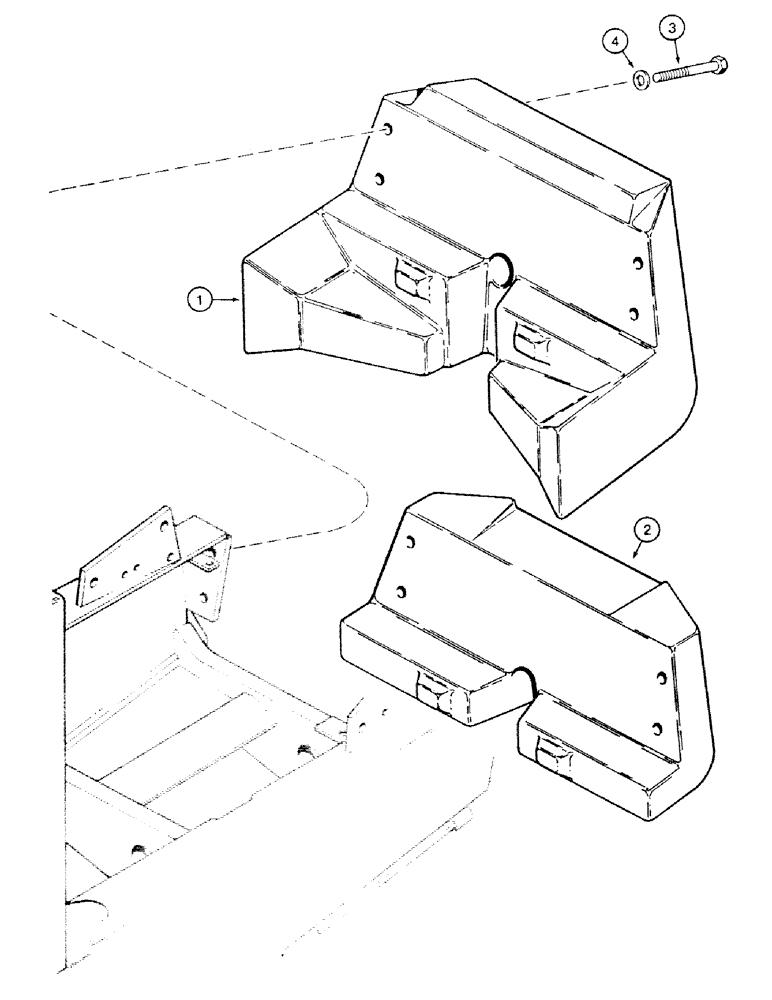

Схема запчастей Case 580SK - (9-088) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1a

D141716

BALANCER

COUNTERWEIGHT 408 kg, If so equipped

1шт.

Without Pump Guard

1шт.

2

D141717

BALANCER

COUNTERWEIGHT 181 kg If So Equipped

1шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 115 mm

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3/4"

4шт.
