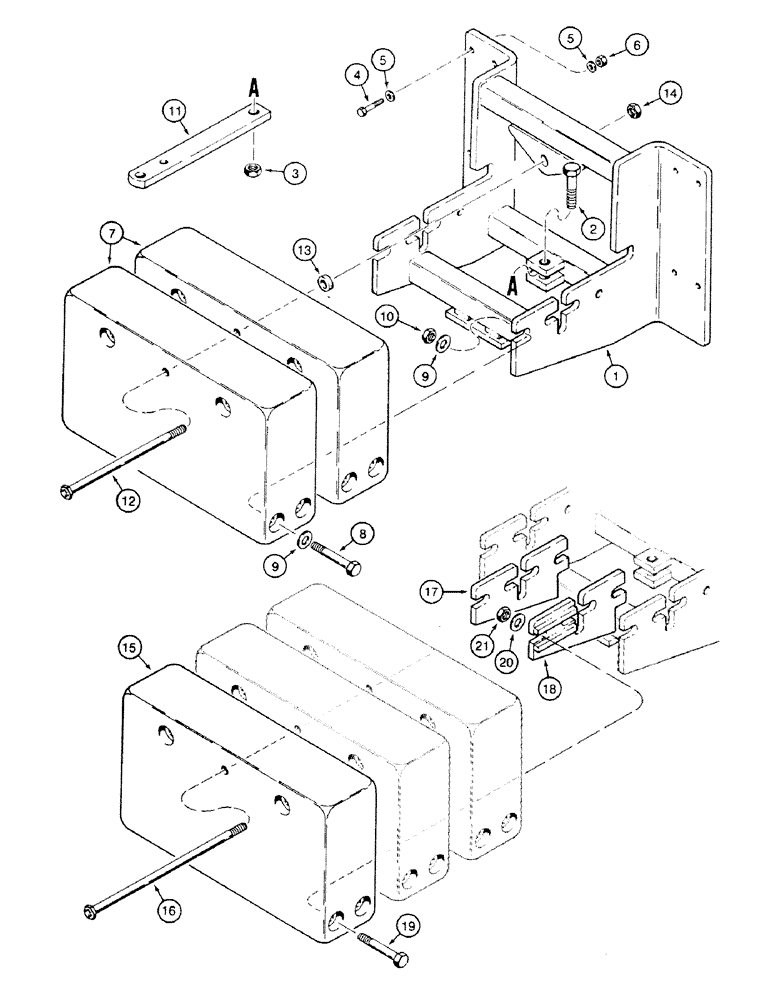

Запчасти Case 580SK (9-086) - REAR COUNTERWEIGHT AND DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

143098A1

FRAME

1шт.

2

426-1880

BOLT,Hex, 1-1/8" - 7 x 5", Gr 8

1-1/8 x 127 mm

1шт.

3

131-200

LOCK NUT,1 1/8"-7, GC

1-1/8"

1шт.

4

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3/4"

16шт.

6

429-1012

NUT,3/4"-10, G8

8шт.

7

D31204

BALANCER

COUNTERWEIGHT 646 kg

2шт.

8

113-930

BOLT,Hex, 1" - 8 x 7", Gr 5

8шт.

9

495-11106

WASHER,1", SAE

16шт.

10

425-1016

NUT,1"-8, G5

8шт.

11

D93293

DRAWBAR, SWINGING

1шт.

12

D139275

BOLT

1шт.

13

H62406

SPACER

1шт.

14

231-14416

LOCK NUT,1"-8, GB

1"

1шт.

15

D31204

BALANCER

COUNTERWEIGHT 646 kg

1шт.

Special Parts to Mount Additional Weight

1шт.

16

D140548

BOLT

1шт.

Special Parts to Mount Additional Weight

1шт.

17

D93344

PLATE

BRACKET Left

1шт.

Special Parts to Mount Additional Weight

1шт.

18

D93345

PLATE

BRACKET Right

1шт.

Special Parts to Mount Additional Weight

1шт.

19

413-16108

BOLT,Hex, 1" - 8 x 6-3/4", Gr 5

1" x 171 mm

4шт.

Special Parts to Mount Additional Weight

1шт.

20

195-553

WASHER,1", SAE

1"

4шт.

Special Parts to Mount Additional Weight

1шт.

21

425-1016

NUT,1"-8, G5

8шт.

Special Parts to Mount Additional Weight

1шт.
