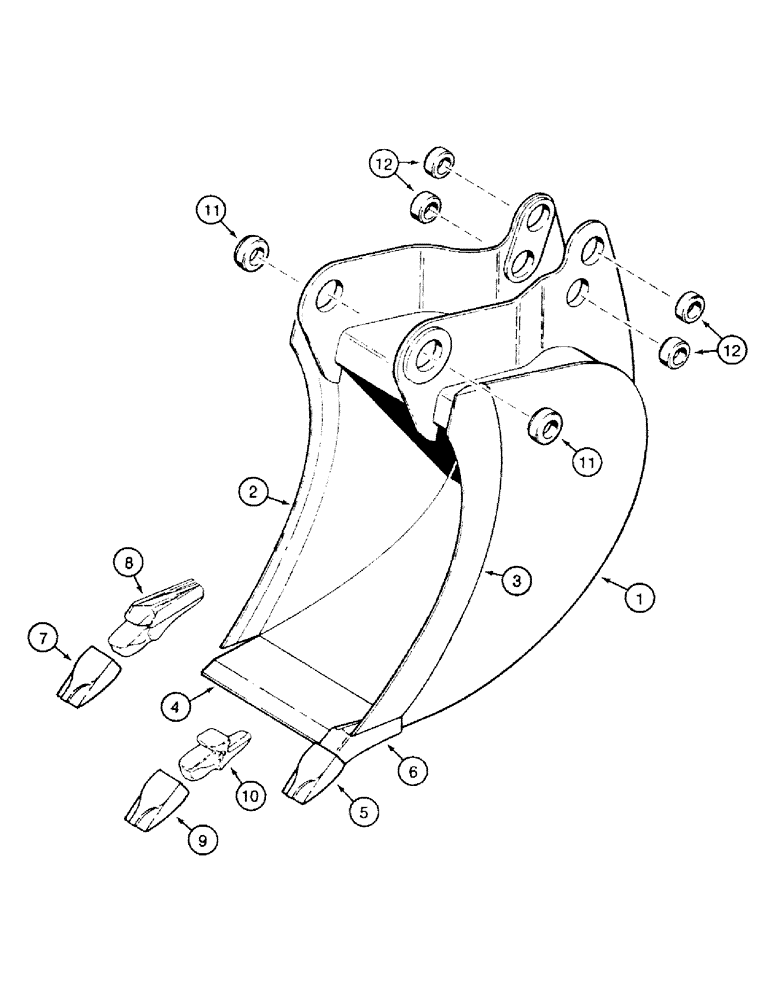

Запчасти Case 580SK (9-078) - BACKHOE BUCKETS, TRENCHING BUCKET : 6 TY17 (09) - CHASSIS/ATTACHMENTS

1

124498A1

BUCKET

900 mm Consists of : 2 - 12

1шт.

2

E47233

EDGE, CUTTING

Left

1шт.

3

E47234

EDGE, CUTTING

Right

1шт.

4

E47023

BLADE

EDGE Cutting Centre

1шт.

E48693

TOOTH

Right With : 5,6

1шт.

5

E48692

TIP

POINT Right

1шт.

6

E46586

SHANK

Right

1шт.

E48694

TOOTH

Left With : 7,8

1шт.

7

E48692

TIP

POINT Left

1шт.

8

E46541

SHANK

Left

1шт.

E48695

TOOTH

Centre With : 9,10

1шт.

9

E48692

TIP

POINT Centre

1шт.

10

E46540

TOOTH

Centre

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
