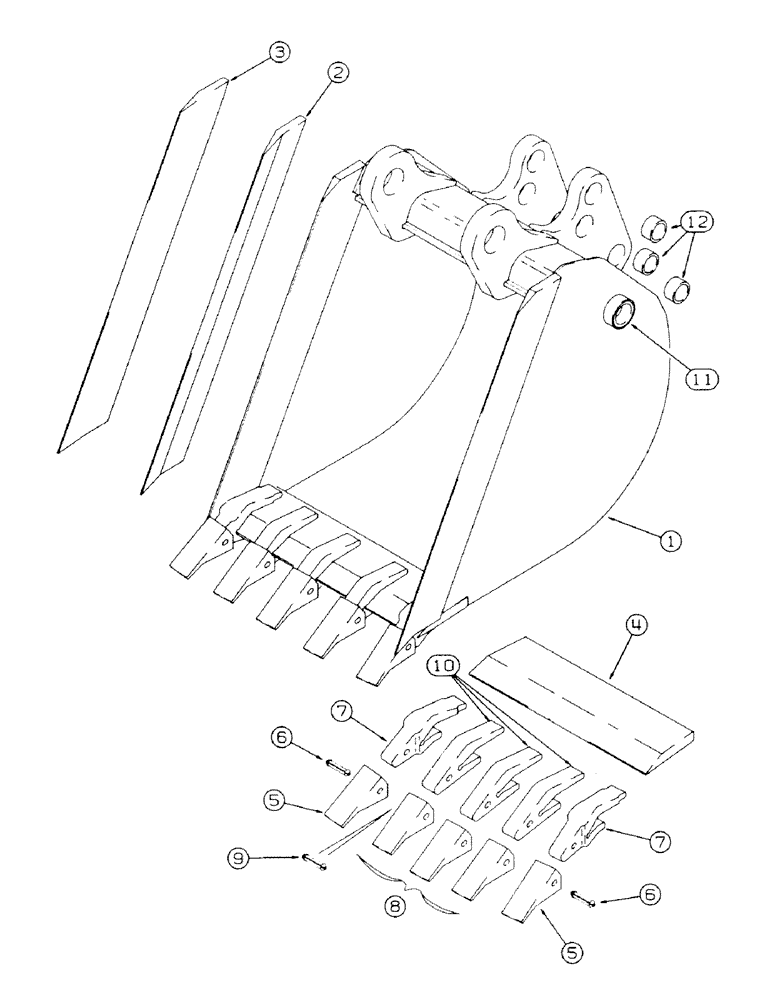

Запчасти Case 580SK (9-076) - BACKHOE BUCKETS, TRENCHING BUCKETS, INCURVED, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D147247

BUCKET

406 mm (3 T)

1шт.

1

D146588

BUCKET

457 mm (4 T)

1шт.

1

D150348

BUCKET

610 mm (5 T)

1шт.

2

D146421

EDGE, CUTTING

Right

1шт.

3

D146420

EDGE, CUTTING

Left

1шт.

4

D147249

EDGE

Cutting 406 mm

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

457 mm

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

610 mm Centre

1шт.

D139851

BUCKET TOOTH

Consists of 5, 6, 7

1шт.

5

D39093

TOOTH

POINT

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Centre Consists of 8, 9, 10

1шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

1шт.

10

D48212

SHANK

1шт.

11

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

2-1/2" x 3/4"

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-7/8" x 1-1/4"

6шт.
