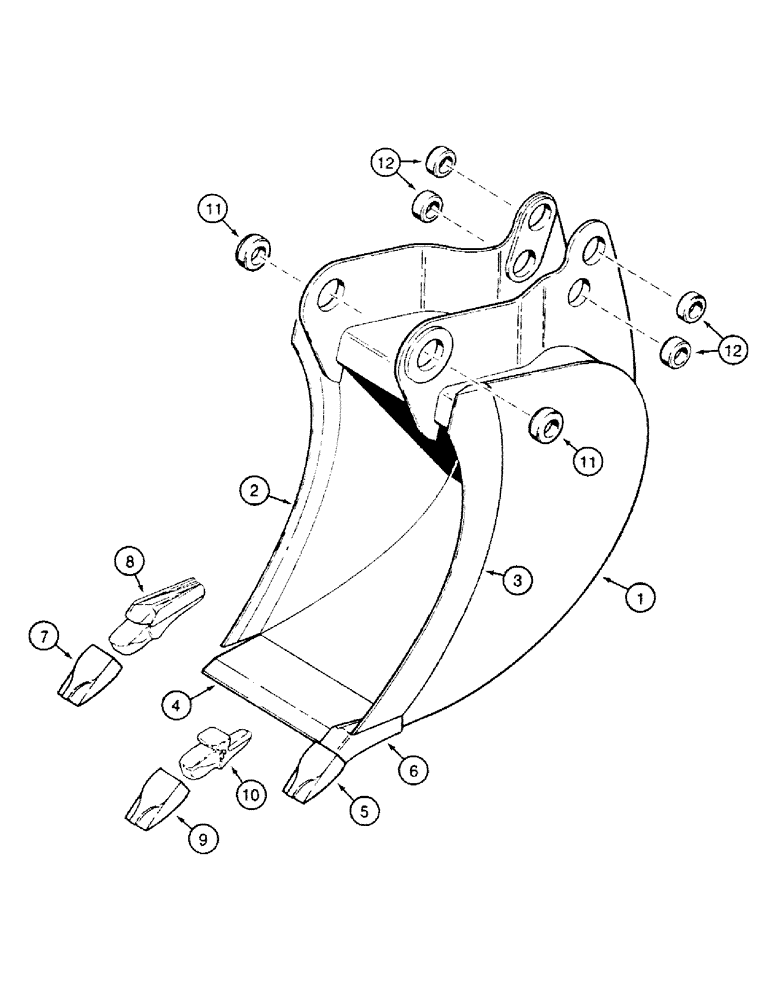

Запчасти Case 580SK (9-072) - BACKHOE BUCKETS, TRENCHING BUCKETS, INCURVED (09) - CHASSIS/ATTACHMENTS

1a

124490A1

BUCKET

270 mm (3 T) Consists of : 2,3,4A,5 - 12

1шт.

1b

124489A1

BUCKET

300 mm (3 T) Consists of : 2,3,4B,5 - 12

1шт.

1c

124488A1

BUCKET

400 mm (3 T) Consists of : 2,3,4C,5 - 12

1шт.

1d

124487A1

BUCKET

450 mm (4 T) Consists of : 2,3,4D,5 - 12

1шт.

1e

124486A1

BUCKET

600 mm (4 T) Consists of : 2,3,4E,5 - 12

1шт.

1f

124485A1

BUCKET

750 mm (5 T) Consists of : 2,3,4F,5 - 12

1шт.

2

E47233

EDGE, CUTTING

Left

1шт.

3

E47234

EDGE, CUTTING

Right

1шт.

4a

E48168

BLADE

EDGE Cutting, 270 mm Centre

1шт.

4b

E47251

EDGE, CUTTING

300 mm Centre

1шт.

4c

E46998

BLADE

EDGE cutting 400 mm Centre

1шт.

4d

E47066

EDGE, CUTTING

450 mm Centre

1шт.

4e

E46573

BLADE

EDGE Cutting, 600 mm Centre

1шт.

4f

E47022

BLADE

EDGE Cutting, 750 mm Centre

1шт.

E48693

TOOTH

Right Consists of : 5,6

1шт.

5

E48692

TIP

POINT

1шт.

6

E46586

SHANK

Right

1шт.

E48694

TOOTH

Left Consists of : 7,8

1шт.

7

E48692

TIP

POINT

1шт.

8

E46541

SHANK

Left

1шт.

E48695

TOOTH

Centre Consists of : 9,10

1шт.

9

E48692

TIP

POINT

1шт.

10

E46540

TOOTH

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4"

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2"

4шт.
