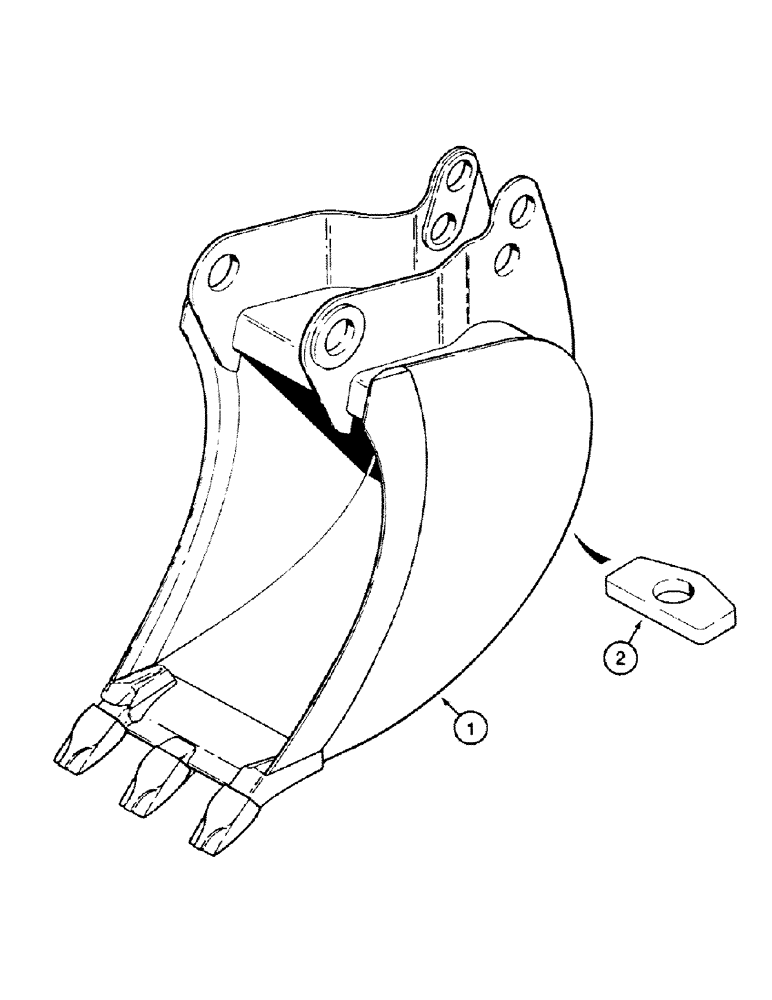

Запчасти Case 580SK (9-070) - BACKHOE BUCKETS, TRENCHING BUCKETS, INCURVED, WITH EYE LIFT BRACKET (09) - CHASSIS/ATTACHMENTS

124504A1

BUCKET

270 mm (3 T) Consists of : 1A,2

1шт.

124503A1

BUCKET

300 mm (3 T) Consists of : 1B,2

1шт.

124502A1

BUCKET

400 mm (3 T) Consists of : 1C,2

1шт.

124501A1

BUCKET

450 mm (4 T) Consists of : 1D,2

1шт.

124500A1

BUCKET

600 mm (4 T) Consists of : 1E,2

1шт.

124499A1

BUCKET

750 mm (5 T) Consists of : 1F,2

1шт.

124498A1

BUCKET

900 mm (6 T) Consists of : 1G,2

1шт.

1a

124490A1

BUCKET

270 mm (3 T) See Figure 9-072

1шт.

1b

124489A1

BUCKET

300 mm (3 T) See Figure 9-072

1шт.

1c

124488A1

BUCKET

400 mm (3 T) See Figure 9-072

1шт.

1d

124487A1

BUCKET

450 mm (4 T) See Figure 9-072

1шт.

1e

124486A1

BUCKET

600 mm (4 T) See Figure 9-072

1шт.

1f

124485A1

BUCKET

750 mm (5 T) See Figure 9-072

1шт.

1g

124484A1

BUCKET

900 mm (6 T)

1шт.

2

E47174

LARGE PLATE

PLATE, LARGE BRACKET

1шт.
