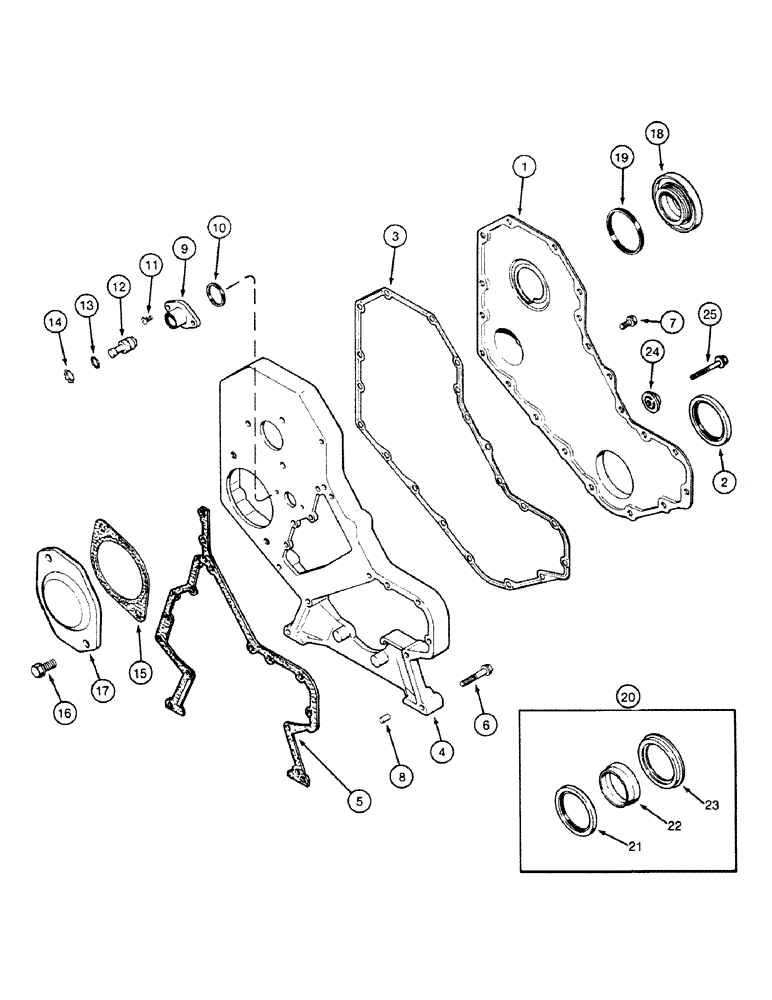

Запчасти Case 580SK (2-26) - FRONT GEAR COVER (02) - ENGINE

1

J903794

COVER

Front

1шт.

2

SEAL Front Order : J904353

1шт.

3

J914385

GASKET,1.02mm Thk

1шт.

4

J920518

HOUSING

Timing Gear

1шт.

5

J916131

GASKET

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

BOLT, Flange M8 x 16 x 10

11шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

5шт.

8

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

9

J919683

HOUSING

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

1шт.

13

J913994

O-RING

1шт.

14

J904849

SNAP RING,0.875", Int, #87

1шт.

15

J919601

GASKET

Cover Plate

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

J914868

COVER

PLATE

1шт.

18

J903463

PLUG,M63 x 5

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

20

J904353

GASKET KIT

seal Consists of : 21 - 23

1шт.

21

SEAL Front

1шт.

22

TOOL

1шт.

23

TOOL

1шт.

24

J912772

RETAINER

1шт.

25

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
