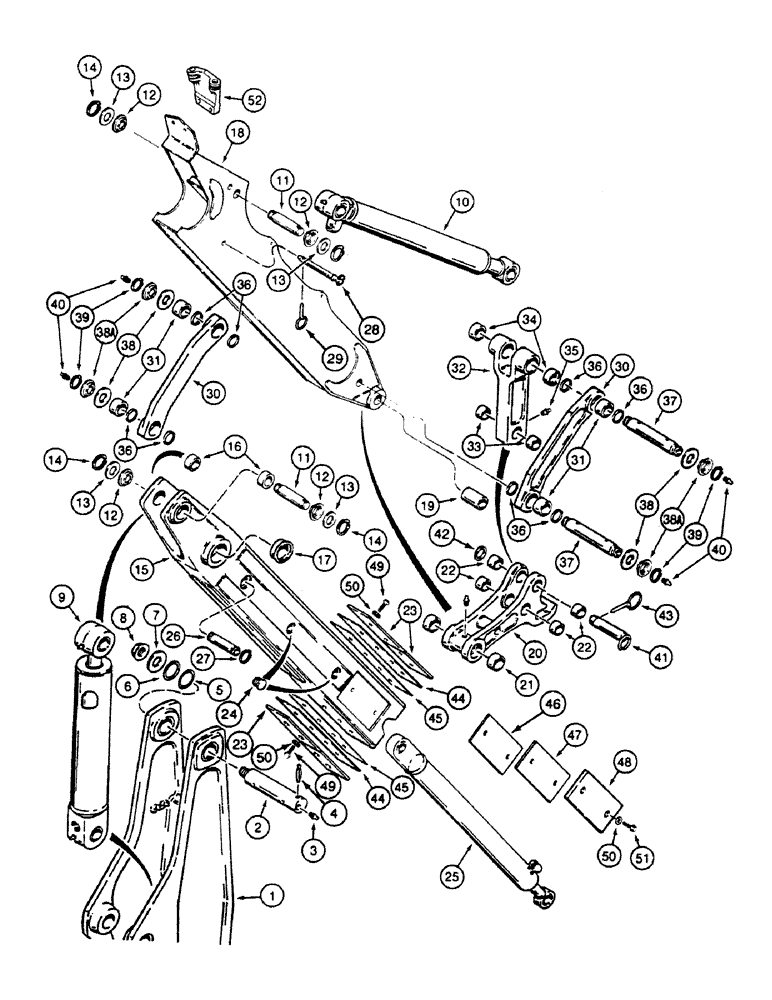

Запчасти Case 580SK (9-064) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

E48863

BOOM

See Figure 9-052

1шт.

2

D132494

PIN,70mm OD x 331mm L

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

UNION 1/8"

2шт.

4

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

3.05 mm

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

8

D120610

NUT

1-3/4"

1шт.

9

1340984C1

CYLINDER ASSY.

DIPPER See Figure 8-372, Serial Range: -JJH0014388

1шт.

9

1542912C1

CYLINDER ASSY.

DIPPER See Figure 8-374, Serial Range: JJH0014389-JJH0046126

1шт.

9

110294A1

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke

DIPPER See Figure 8-374, Start Serial: JJH0046127

1шт.

10

1340991C1

CYLINDER ASSY.

DIPPER See Figure 8-376, Serial Range: -JJH0014399

1шт.

10

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

10

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

10

1542920C1

CYLINDER ASSY.

DIPPER See Figure 8-378, Serial Range: JJH0014400-JJH0046190

1шт.

10

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

10

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

10

110290A1

CYLINDER ASSY.

DIPPER See Figure 8-378, Start Serial: JJH0046191

1шт.

10

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

10

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

11

D141666

PIN,50mm OD x 199mm L

2шт.

12

D143809

SPACER

4шт.

13

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

2шт.

14

103-16175

SNAP RING,#175, Ext

4шт.

D150969

ELEMENT

DIPPER Inner Consists Of : 15,16,17

1шт.

15

DIPPER

1шт.

16

D141389

BUSHING

50 x 34 mm, Serial Range: -JJH0016799

1шт.

16

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 mm, Start Serial: JJH0016800

2шт.

17

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 x 36 mm

2шт.

18

D145787

HOUSING

Outer Consists Of : 19 - 22, Serial Range: -JJH0047420

1шт.

18

118313A1

ASSEMBLY

HOUSING Outer Consists Of : 19 - 22, Start Serial: JJH0047421

1шт.

19

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

45 x 94 mm

2шт.

134437A1

COUPLING

ASSY Consists of : 20 - 22

1шт.

20

COUPLER

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

30 mm

2шт.

22

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm

4шт.

23

E48738

LARGE PLATE

PLATE, LARGE

4шт.

24

D133865

PLUG

4шт.

25

1340969C1

CYLINDER ASSY.

See Figure 8-380

1шт.

26

D129892

PIN

1шт.

27

800-44040

SNAP RING,M40, Ext

retaining

2шт.

28

D140247

LOCK PIN,25.4mm OD x 232.6mm L

1шт.

29

A33509

PIN,11.18mm OD

1шт.

30

D134486

LINK

With : 31

2шт.

31

D136574

BUSHING,50.19mm ID x 70mm OD x 36mm L

2шт.

32

D150080

PITMAN

LINK With : 33,34

1шт.

33

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm

2шт.

34

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

36

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

4шт.

37

D141142

PIN,50mm OD x 306mm L

2шт.

38

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

4шт.

38a

103-16175

SNAP RING,#175, Ext

SPACER 2-1/16"

4шт.

39

D25280

SNAP RING,#175, Ext

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

41

D140653

PIN,44.42mm OD x 152mm L

1шт.

42

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1шт.

43

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

1шт.

44

D140874

BLOCK

SHIM 1,6 mm, Serial Range: -JJH0016799

1шт.

45

D140873

BLOCK

SHIM 0,8 mm, Serial Range: -JJH0016799

1шт.

46

D140885

BLOCK

SHIM 0,8 mm

1шт.

47

D140886

SHIM,116mm OD x 1.6mm Thk

SHIM 1,6 mm

1шт.

48

E47838

HYD CONNECTOR

PLATE Outer

2шт.

49

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

50

D143167

WASHER

8шт.

51

D143961

FLANGE BOLT,Hex, 3/8"-16 x 1/2", Serr

3/8 x 13 mm

4шт.

52

103270A1

SHIN

CLAMP See Figure 8-128

1шт.
