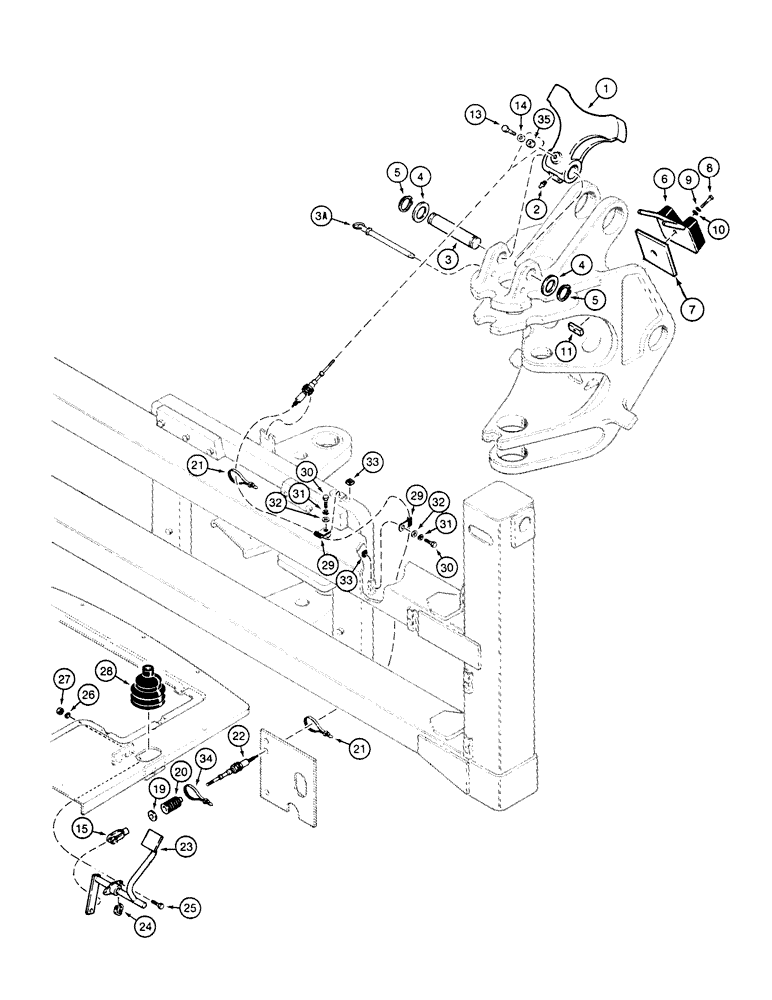

Запчасти Case 580SK (9-058) - BOOM LATCH, SIDESHIFT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D143296

ARRESTER

LATCH

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

D132693

PIN,40mm OD x 174mm L

1шт.

3a

D140855

PIN,15.88mm OD

1шт.

4

D127843

WASHER

2шт.

5

800-44040

SNAP RING,M40, Ext

Retaining

2шт.

6

E48294

STOP

BUMPER

1шт.

7

E48902

LARGE PLATE

PLATE, LARGE

1шт.

8

113-274

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

11

D135667

PLATE

BAR

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

495-21044

WASHER,3/8"

1шт.

15

E48298

CLEVIS,1/4" - 28

1шт.

19

E48513

WASHER

, Serial Range: -JJH0046685

1шт.

20

132922A1

BELLOWS

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

22

E48297

CABLE

1шт.

23

138205A1

PEDAL

LEVER Not For Prestige

1шт.

23

E49918

PEDAL

LEVER Prestige Version

1шт.

24

D95096

SNAP RING,M15.88 x 1.27mm Thk

Retaining

1шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

D86664

BOOT

1шт.

29

49838

CLAMP

3шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

31

492-11031

LOCK WASHER,5/16"

3шт.

32

495-11034

WASHER,5/16", SAE

3шт.

33

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

3шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

35

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.
