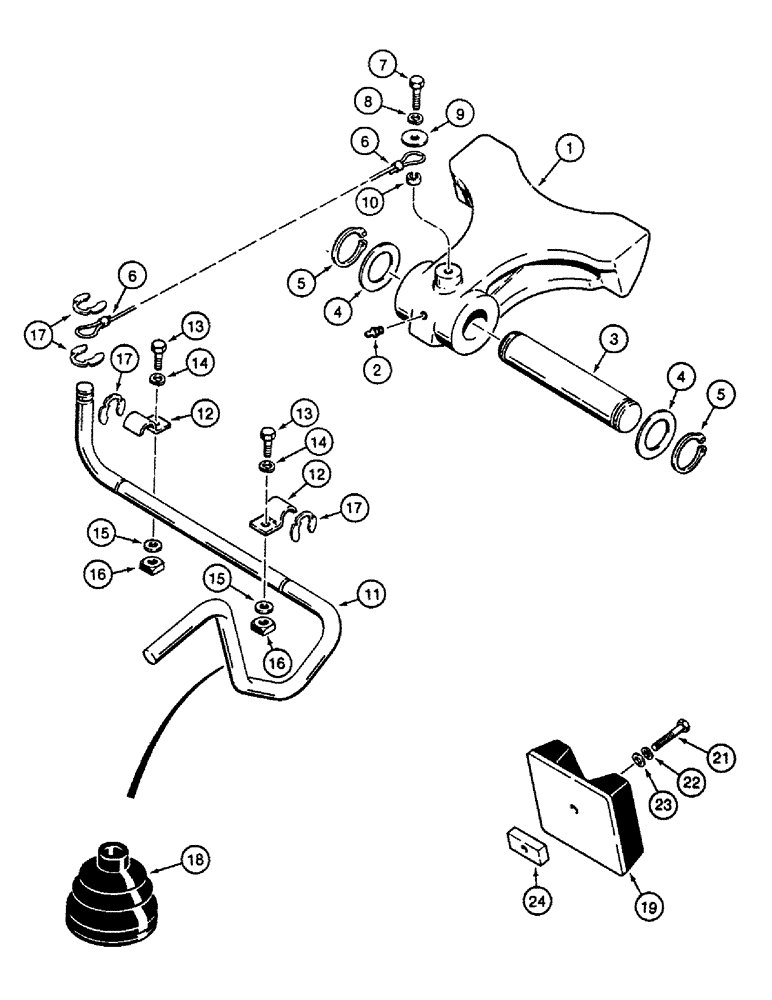

Запчасти Case 580SK (9-056) - INTEGRAL BACKHOE, BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

D143296

ARRESTER

LATCH

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

D129227

PIN,40mm OD x 196mm L

1шт.

4

D127843

WASHER

41 x 64 x 3 mm

2шт.

5

800-44040

SNAP RING,M40, Ext

2шт.

6

D129641

CABLE

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 x 16 x 6 mm

2шт.

11

D142634

THREADED ROD

1шт.

12

D143870

CLAMP

2шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

17

D95096

SNAP RING,M15.88 x 1.27mm Thk

4шт.

18

D86664

BOOT

1шт.

19

D141556

RUBBER BLOCK

BUMPER

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

195-525

WASHER,3/8", SAE

1шт.

24

D135667

PLATE

1шт.
