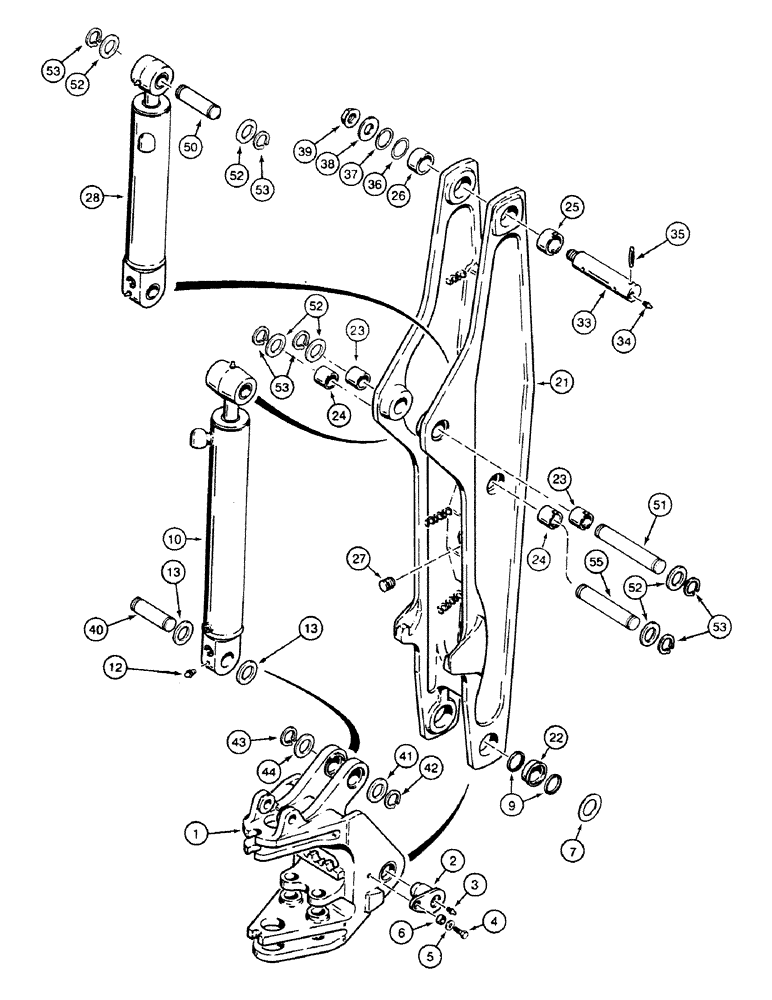

Запчасти Case 580SK (9-052) - SWING TOWER AND BOOM, FOR INTEGRAL AND SIDESHIFT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

SWING Tower See Figure 9-046

1шт.

2

142698A1

PIN

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 38 mm

2шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

22 mm

2шт.

6

D132045

SPACER,20mm ID x 31.75mm OD x 12mm L

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

2шт.

9

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

4шт.

10

1346217C1

CYLINDER ASSY.

Boom See Figure 8-368, Serial Range: -JJH0014399

1шт.

10

1542916C1

CYLINDER ASSY.

Boom See Figure 8-370, Serial Range: JJH0014400-JJH0046137

1шт.

10

1543391C1

CYLINDER ASSY.

Boom See Figure 8-370, Start Serial: JJH0046138

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

4шт.

21

E48863

BOOM

With : 22 - 27

1шт.

22

D136569

BUSHING,70.19mm ID x 94mm OD x 38mm L

70 x 33 mm, Serial Range: -JJH0047599

2шт.

22

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

, Serial Range: -JJH0047600

2шт.

23

D145080

BUSHING

50 x 78 mm, Serial Range: -JJH0016383

2шт.

23

D148798

BUSHING

, Start Serial: JJH0016384

1шт.

24

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

50 x 54 mm, Serial Range: -JJH0016383

2шт.

24

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

, Start Serial: JJH0016384

1шт.

25

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 x 44 mm

1шт.

26

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 x 44 mm

1шт.

27

D133865

PLUG

1шт.

28

1340984C1

CYLINDER ASSY.

Dipper See Figure 8-372, Serial Range: -JJH0014388

1шт.

28

1542912C1

CYLINDER ASSY.

Dipper See Figure 8-374, Serial Range: JJH0014389-JJH0046126

1шт.

28

110294A1

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke

Dipper See Figure 8-374, Start Serial: JJH0046127

1шт.

33

D132494

PIN,70mm OD x 331mm L

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

35

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

1шт.

36

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD)

1шт.

37

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

38

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

39

D120610

NUT

1-3/4"

1шт.

40

112294A1

PIN

1шт.

41

D144423

WASHER,66.7mm ID x 86mm OD x 3.4mm Thk

1шт.

42

800-40065

SNAP RING,M65, Ext

Retaining

1шт.

43

800-40070

SNAP RING,M70 Ext

Retaining

1шт.

44

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

Washer

1шт.

50

D138022

PIN,50mm OD x 240mm L

1шт.

51

D138023

PIN,50mm OD x 290mm L

1шт.

52

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

6шт.

53

103-16175

SNAP RING,#175, Ext

6шт.

55

D138022

PIN,50mm OD x 240mm L

1шт.
