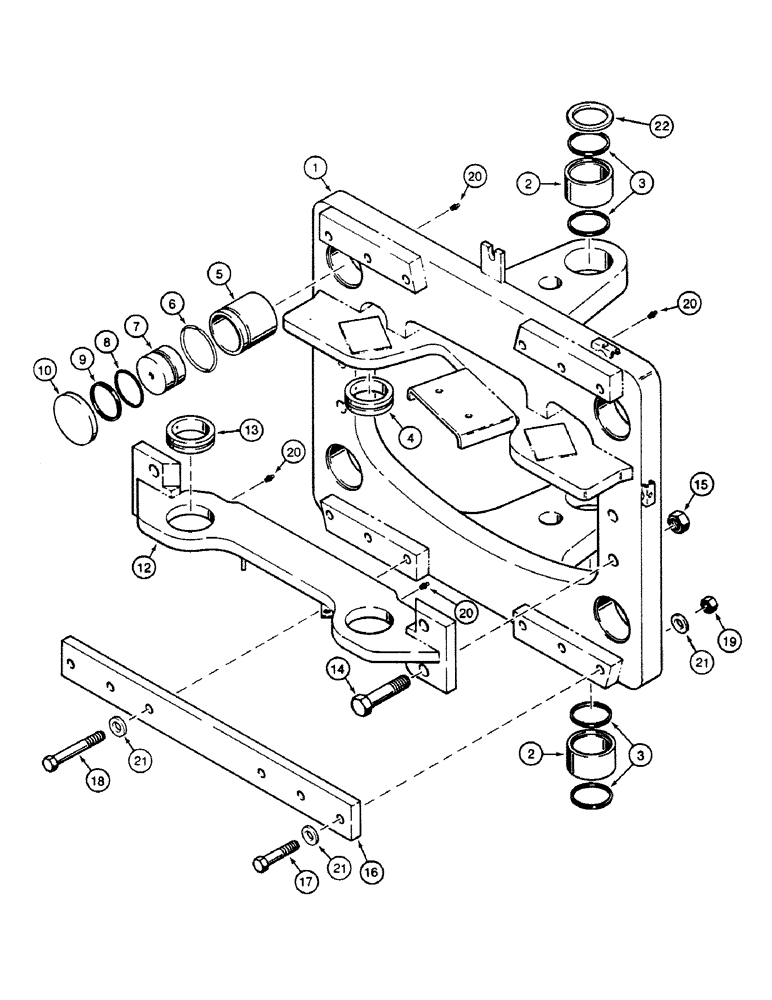

Запчасти Case 580SK (9-050) - SIDESHIFT BACKHOE SLIDING FRAME (09) - CHASSIS/ATTACHMENTS

112533A1

CHASSIS

FRAME ASSY, Start Serial: JJH0045481

1шт.

D147675

CHASSIS

FRAME ASSY Consists Of : 1 - 6, Serial Range: -JJH0045480

1шт.

1

FRAME

1шт.

2

D136715

BUSHING

2шт.

3

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

4шт.

4

D147280

BUSHING,100.35mm ID x 120mm OD x 25mm L

2шт.

5

D73503

SLEEVE

Upper

2шт.

5

CASD73504

LINER, ENGINE CYLIND

Lower

2шт.

6

D24982

RING, SNAP

RING SNAP Retaining

4шт.

D68290

PISTON

Consists of : 7 - 9

4шт.

7

PISTON

1шт.

8

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

9

H754614

WASHER

1шт.

10

CASD71729

COVER

PLATE

4шт.

12

176301A1

SUPPORT

PLATE With : 13A, Serial Range: -JJH0045480

4шт.

12

D151158

LARGE PLATE

PLATE, LARGE SUPPORT With : 13A, Start Serial: JJH0045481

1шт.

13

D147280

BUSHING,100.35mm ID x 120mm OD x 25mm L

, Serial Range: -JJH0047640

2шт.

13a

101907A1

BUSHING,100.35mm ID x 120mm OD x 20mm L

2шт.

14

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

1" x 102 mm

4шт.

15

429-1016

NUT,1"-8, G8

4шт.

16

E48900

PLATE

RETAINER, Serial Range: -JJH0045480

2шт.

16

D148573

PLATE

RETAINER, Start Serial: JJH0045481

2шт.

17

426-1692

BOLT,Hex, 1" - 8 x 5-3/4", Gr 8

BOLT 1" x 146 mm

10шт.

18

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

BOLT 1" x 89 mm

2шт.

19

429-1016

NUT,1"-8, G8

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

22

133762A1

WASHER

1,5 mm

1шт.

22

133763A1

WASHER

2,0 mm

1шт.

22

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

3,2 mm

1шт.
