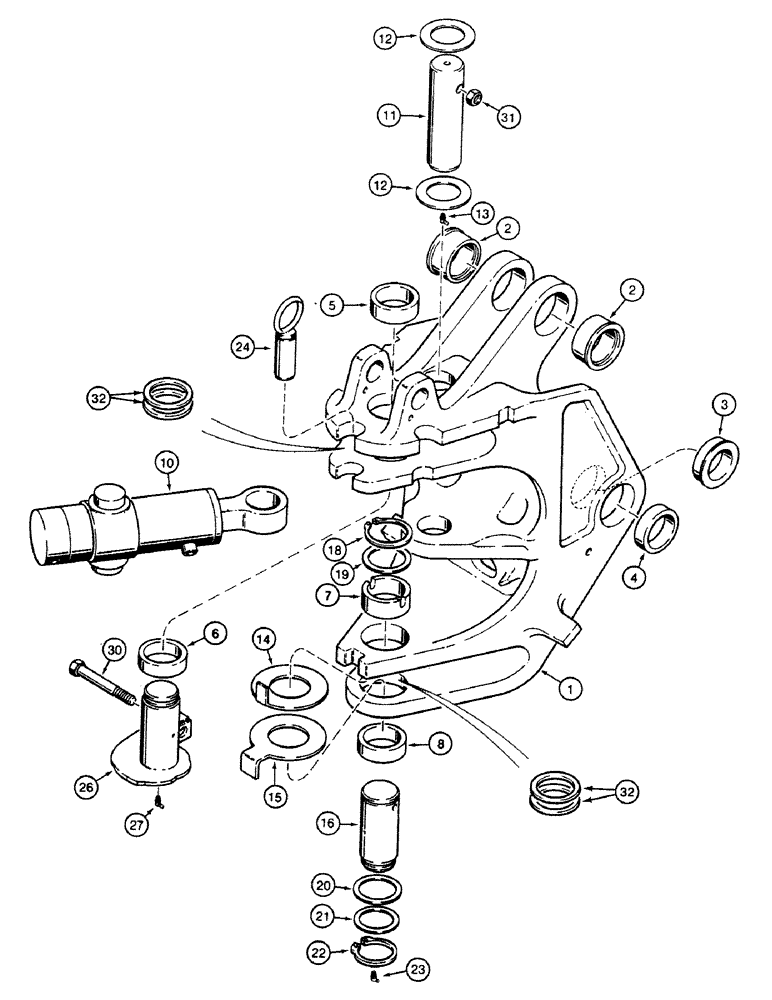

Запчасти Case 580SK (9-048) - SIDESHIFT BACKHOE SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D146531

FRAME

SWING Tower With : 2 - 8

1шт.

2

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

2шт.

3

D135742

BUSHING,70.19mm ID x 94mm OD x 24mm L

2шт.

4

D135741

BUSHING,70.19mm ID x 90mm OD x 24mm L

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

1шт.

7

D135558

BUSHING,70.19mm ID x 86mm OD x 34mm L

1шт.

8

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

1шт.

10

1542826C1

CYLINDER ASSY.

Right See Figure 8-366

1шт.

10

1542827C1

CYLINDER ASSY.

Left See Figure 8-366

1шт.

11

E48845

PIN

1шт.

12

R36577

WASHER,107.95mm OD x 1.828mm Thk

64 mm

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

D136699

WASHER

1шт.

15

D137476

WASHER

1шт.

16

E48844

PIN

1шт.

18

800-10070

RING, SNAP

RING SNAP

1шт.

19

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

20

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD)

1шт.

21

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

83 x 2 mm

2шт.

22

800-10065

SNAP RING,65mm ID

If So Equipped

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

24

E49650

LARGE PIN

PIN, LARGE

1шт.

26

E48847

PIN,70.05mm OD x 154mm L

1шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

30

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

3/4 x 146 mm

1шт.

31

231-14412

LOCK NUT,3/4"-10, GB

1шт.

32

133762A1

WASHER

1,5 mm

1шт.

32

133763A1

WASHER

2,0 mm

1шт.

32

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

3,2 mm

1шт.
