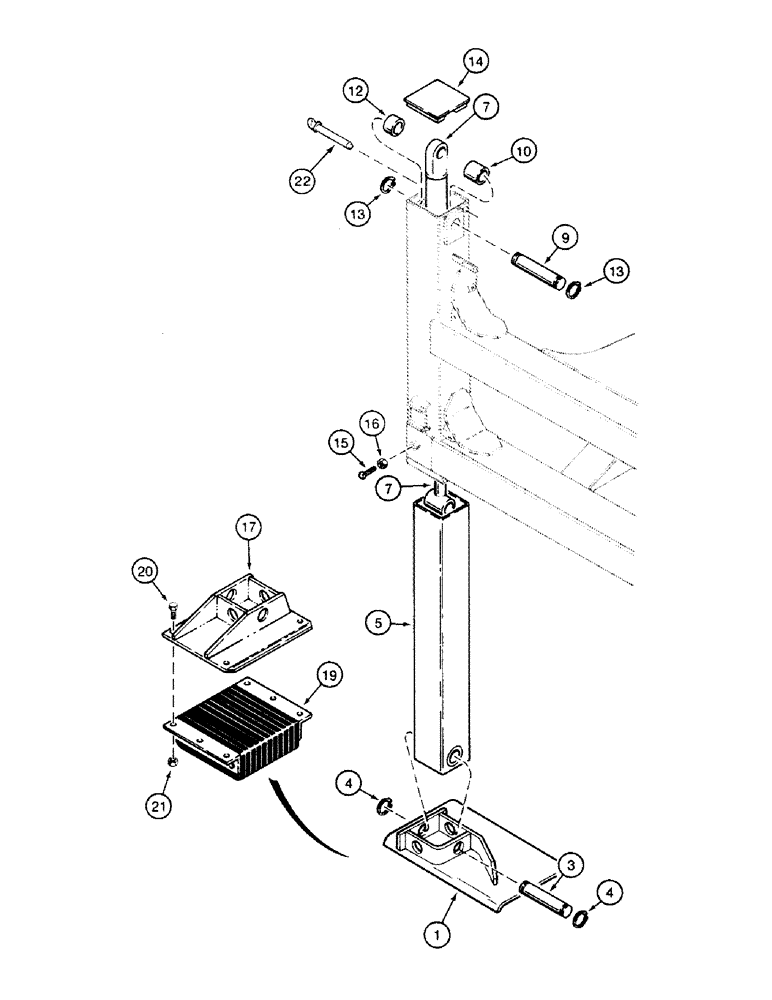

Запчасти Case 580SK (9-042) - SIDESHIFT BACKHOE STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

137447A1

SKID/SHOE

FOOT Left

1шт.

1

137446A1

SKID/SHOE

FOOT Right

1шт.

3

D69588

PIN,45mm OD x 196mm L

2шт.

4

103-16175

SNAP RING,#175, Ext

4шт.

5

E35763

ARM

LEG Right, Serial Range: -JJH0047017

1шт.

5

127972A1

ARM

LEG Right, Start Serial: JJH0047018

1шт.

5

E35764

ARM

LEG Left, Serial Range: -JJH0047017

1шт.

5

127973A1

ARM

LEG Left, Start Serial: JJH0047018

1шт.

7

G101353

CYLINDER ASSY.

Right See Figure 8-362

1шт.

7

G101352

CYLINDER ASSY.

Left See Figure 8-362

1шт.

9

D66699

PIN,45mm OD x 202mm L

2шт.

10

E48810

SPACER

Inner

2шт.

12

E48809

SPACER

Outer

2шт.

13

103-16175

SNAP RING,#175, Ext

4шт.

14

D120671

COVER

, Serial Range: -JJH0047017

2шт.

14

127975A1

COVER

, Start Serial: JJH0047018

2шт.

14

123123A1

COVER

Exigence Version

2шт.

15

485-36232

SET SCREW,Sq Hd, 5/8"-11 x 2"

Set, 5/8 x 52 mm If So Equipped

2шт.

16

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" If So Equipped

2шт.

17

E44846

SKID/SHOE

PLATE Right Use With : 19, Serial Range: -JJH0047017

1шт.

17

141642A1

SKID/SHOE

PLATE Right, Start Serial: JJH0047018

1шт.

17

E44847

SKID/SHOE

PLATE Left Use With : 19, Serial Range: -JJH0047017

1шт.

17

141643A1

SKID/SHOE

PLATE - Left, Start Serial: JJH0047018

1шт.

19

D61368

PAD

Use with 17, 18

2шт.

20

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

21

129-108

NUT,3/4"-10, G5

8шт.

22

D140855

PIN,15.88mm OD

2шт.
