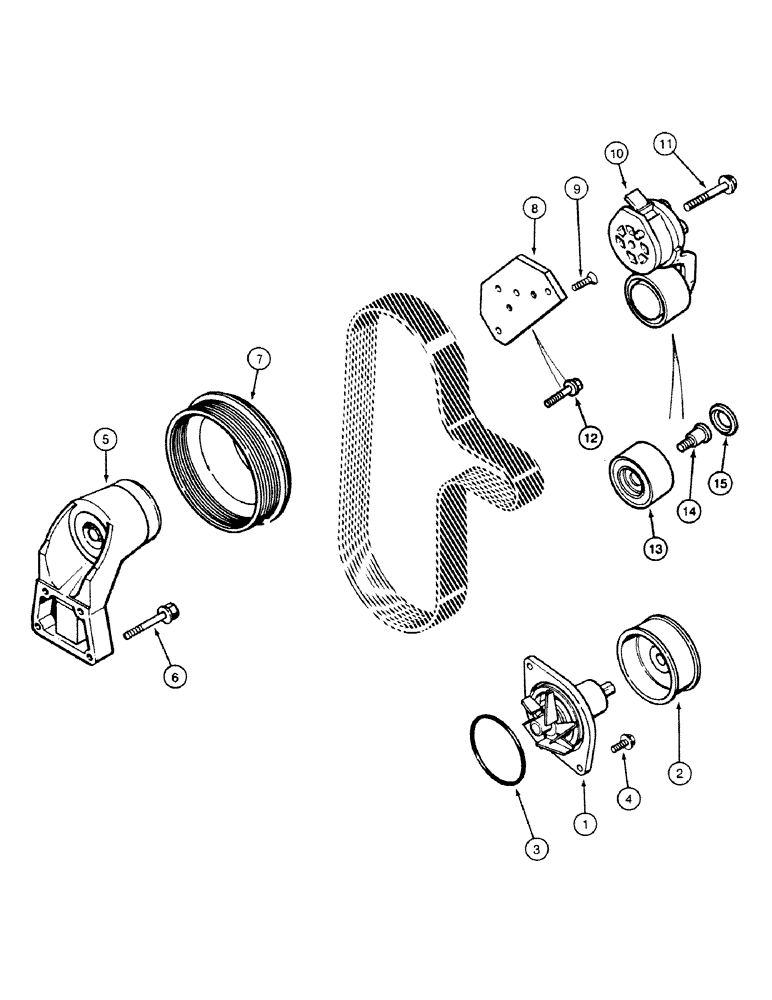

Запчасти Case 580SK (2-24) - WATER PUMP (02) - ENGINE

A77703

PUMP, WATER

KIT Consists of : 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

1

PUMP ASSY

1шт.

2

PULLEY

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

1шт.

5

J911922

SUPPORT ASSY.

BRACKET ASSY Fan

1шт.

6

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

7

J914462

PULLEY,163mm OD

Fan

1шт.

8

J925207

SUPPORT

BRACKET

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

10

J918944

BELT TENSIONER

Belt

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

12

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

A77817

KIT

KIT Consists Of : 13,14,15

1шт.

13

PULLEY

1шт.

14

BOLT

1шт.

15

SEAL

1шт.
