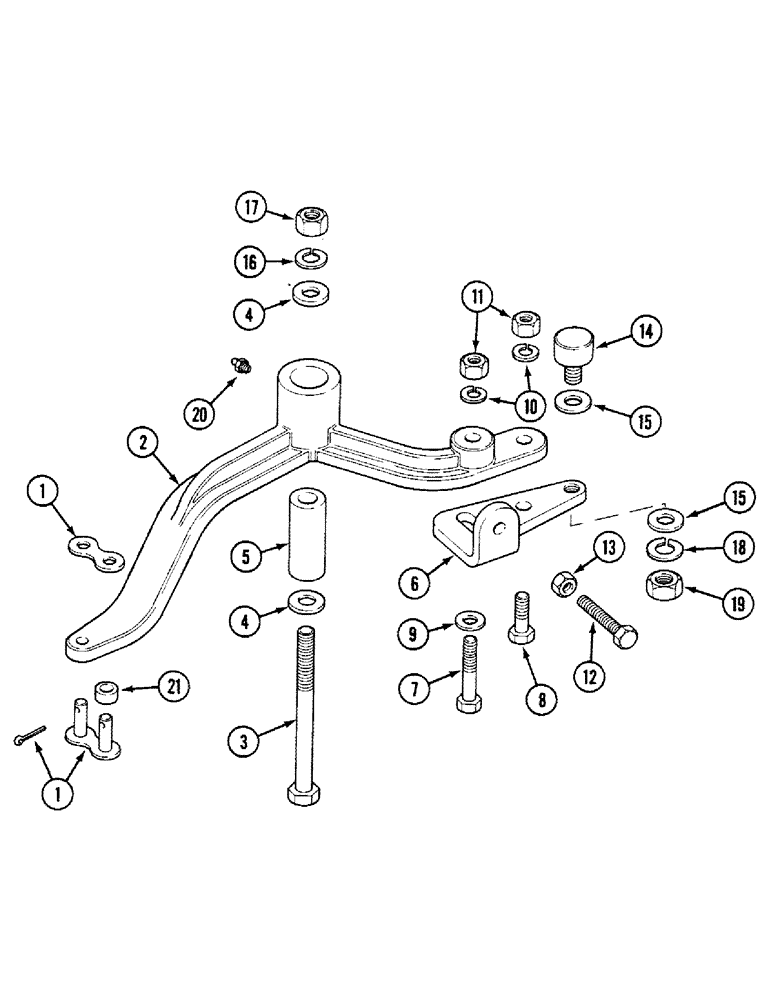

Запчасти Case 580SK (9-038) - SWING SEQUENCE VALVE CONTROL, SIDESHIFT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

E46765

LINK,25.4mm Pitch

1шт.

2

D138485

LEVER

1шт.

3

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1/2 x 140 mm

1шт.

4

495-21056

WASHER,1/2"

9/16"

2шт.

5

D138489

SPACER

1шт.

6

E48116

SUPPORT

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

495-21044

WASHER,3/8"

(7/16")

1шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

14

D145113

SHIFTER ROLLER

FOLLOWER

1шт.

15

495-11047

WASHER,7/16", SAE

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

492-11044

LOCK WASHER,7/16"

1шт.

19

425-117

NUT,7/16"-20, G5

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

E40259

SPACER

1шт.
