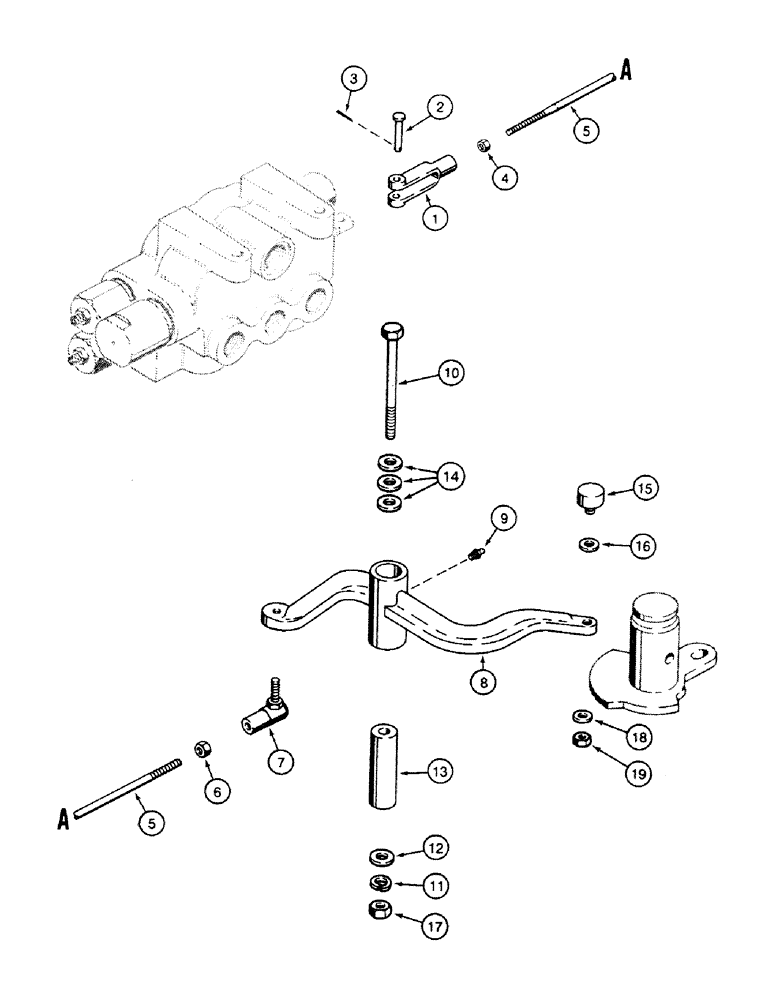

Запчасти Case 580SK (9-036) - SWING SEQUENCE CONTROL VALVE, VERSION WITH INTEGRAL BACKHOE (09) - CHASSIS/ATTACHMENTS

1

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS 5/16"

1шт.

2

141-3

CLEVIS PIN,5/16" x .940"

1шт.

3

132-26

COTTER PIN

3/32 x 19 mm

1шт.

4

25-115

NUT,5/16"-24, G5

1шт.

5

D134127

ROD

1шт.

6

129-323

SPECIAL NUT,3/8"-24, G5, LH

1шт.

7

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

3/8" Left Hand Thread

1шт.

8

D145259

CRANK LEVER

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

10

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2 x 115 mm

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Lock

1шт.

13

D145249

SPACER

1шт.

14

495-21056

WASHER,1/2"

9/16"

1шт.

15

D145113

SHIFTER ROLLER

FOLLOWER

1шт.

16

195-529

WASHER,7/16", SAE

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

492-11044

LOCK WASHER,7/16"

1шт.

19

425-117

NUT,7/16"-20, G5

1шт.
