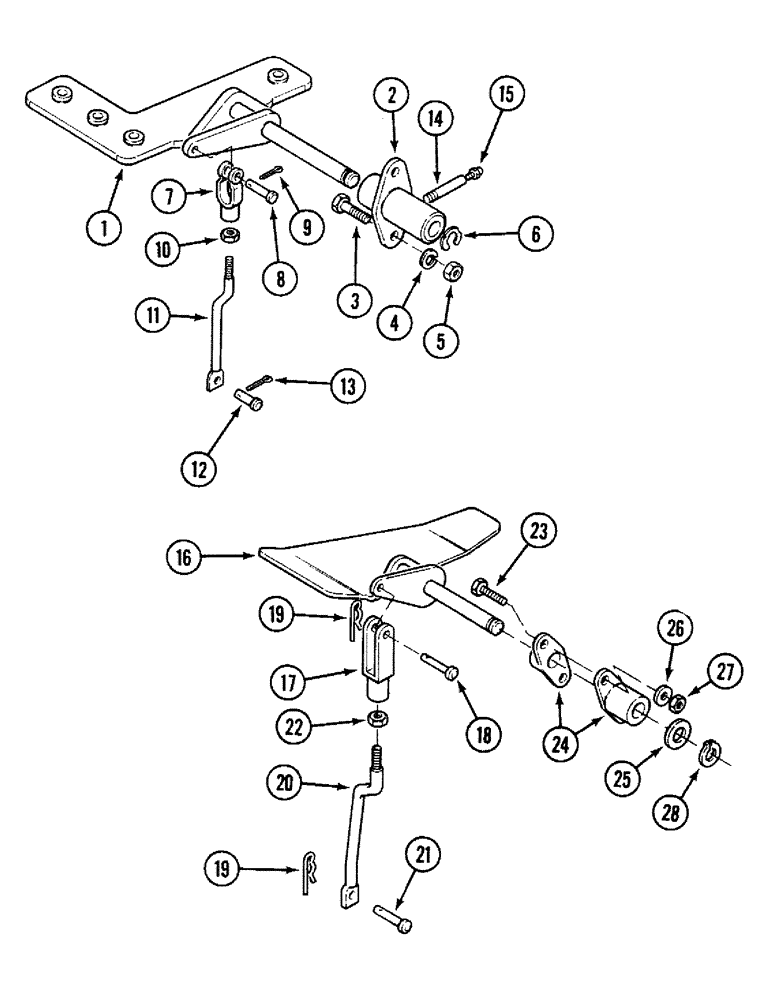

Запчасти Case 580SK (9-034) - CONTROL LEVER, EXTENDAHOE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
E49607
PEDAL
Right, Serial Range: -JJH0016801
1шт.
2
D140933
SUPPORT
, Serial Range: -JJH0016801
1шт.
3
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
, Serial Range: -JJH0016801
2шт.
4
492-11038
LOCK WASHER,3/8"
, Serial Range: -JJH0016801
2шт.
5
425-106
NUT,3/8"-16, Cl 5
, Serial Range: -JJH0016801
2шт.
6
D95097
RING, SNAP
RING SNAP RETAINER, Serial Range: -JJH0016801
1шт.
7
D150493
END
3/8", Serial Range: -JJH0016801
1шт.
8
427-6088
CLEVIS PIN,3/8" x 3/4"
3/8", Serial Range: -JJH0016801
1шт.
9
432-612
COTTER PIN,3/32" x 3/4"
, Serial Range: -JJH0016801
1шт.
10
425-156
JAM NUT,Jam, 3/8"-24, G5
, Serial Range: -JJH0016801
1шт.
11
D140610
ROD
, Serial Range: -JJH0016801
1шт.
12
D149287
PIN,7.9mm OD x 26.72mm L
, Serial Range: -JJH0016801
1шт.
13
432-612
COTTER PIN,3/32" x 3/4"
, Serial Range: -JJH0016801
1шт.
14
D140890
TUBE
, Serial Range: -JJH0016801
1шт.
15
219-1
LUBE NIPPLE,1/8" - 27 NPTF
, Serial Range: -JJH0016801
1шт.
E55080
PEDAL
Consists Of : 16 - 22, Start Serial: JJH0016802
1шт.
16
E55079
PEDAL
, Start Serial: JJH0016802
1шт.
17
D150493
END
3/8", Start Serial: JJH0016802
1шт.
18
427-6088
CLEVIS PIN,3/8" x 3/4"
3/8", Start Serial: JJH0016802
1шт.
19
E46475
AXLE PIN
2.5 x 38 mm, Start Serial: JJH0016802
2шт.
20
D140610
ROD
, Start Serial: JJH0016802
1шт.
21
D149287
PIN,7.9mm OD x 26.72mm L
5/16", Start Serial: JJH0016802
1шт.
22
425-116
NUT,3/8" - 24, Gr 5
, Start Serial: JJH0016802
1шт.
23
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
5/16 x 1-1/4, Start Serial: JJH0016802
2шт.
24
A77310
SUPPORT,0.754" ID x 1.375" OD x 0.81"
, Start Serial: JJH0016802
2шт.
25
495-81261
WASHER,13/16" x 1 1/2" x .067", HDN
, Start Serial: JJH0016802
2шт.
27
425-105
NUT,5/16"-18, G5
, Start Serial: JJH0016802
2шт.
28
D143416
CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk
, Start Serial: JJH0016802
1шт.
Выбрано товаров: 29
