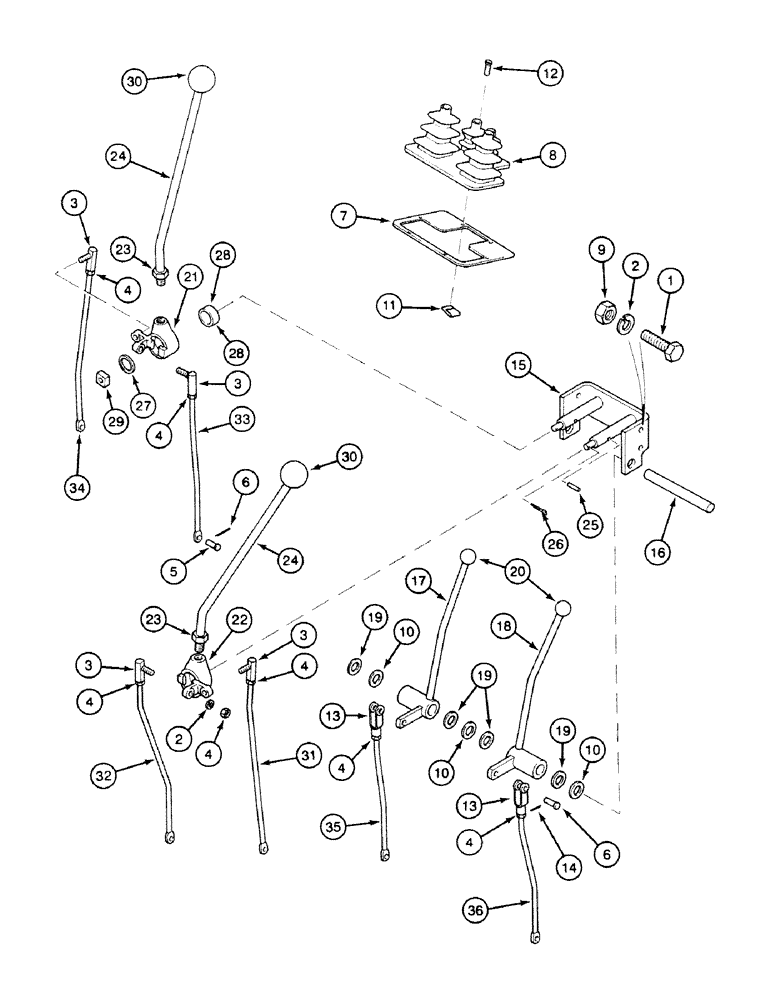

Запчасти Case 580SK (9-030) - BACKHOE CONTROLS, NOT FOR PRESTIGE, WITHOUT EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

2

492-11038

LOCK WASHER,3/8"

8шт.

3

D149295

BALL JOINT,3/8"

4шт.

4

425-116

NUT,3/8" - 24, Gr 5

10шт.

5

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

6

432-612

COTTER PIN,3/32" x 3/4"

8шт.

7

D149512

PLATE

1шт.

8

D149868

BOOT

1шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

495-11081

WASHER,3/4", SAE

3шт.

11

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

12

140-108

SCREW,Cross Pan Hd, #10 - 24 x 3/4"

6шт.

13

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

14

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

15

D149474

SUPPORT

1шт.

16

D149482

SHAFT

SHAFT

1шт.

17

D149479

LEVER ASSY.

Control Right Stabilizer

1шт.

18

D149478

LEVER ASSY.

Control Left Stabilizer

1шт.

19

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

4шт.

20

D59912

KNOB

2шт.

21

L109118

LEVER

TOGGLE Bucket and Dipper

1шт.

22

L105056

LEVER

TOGGLE Swing and Boom

1шт.

23

425-1110

NUT,5/8"-18, G5

2шт.

24

D148953

LEVER

Control Bucket and Dipper Boom and Swing

2шт.

25

438-11218

LOCK PIN,3/16" x 1 1/8", Slotted

3/16" x 1 1/8", Slotted

4шт.

26

432-616

COTTER PIN,3/32" x 1"

2шт.

27

CASD38298

RING

1.438", Int, #143

2шт.

28

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

2шт.

29

D38305

BLOCK

2шт.

30

D39118

KNOB

2шт.

31

D148954

LEVER

ROD Swing

1шт.

32

D148955

ROD

1шт.

32

115608A1

ROD

SAEJ1177 Boom

1шт.

33

D148956

LEVER

ROD

1шт.

33

115607A1

ROD

SAEJ1177 Dipper

1шт.

34

D148957

LEVER

ROD Bucket

1шт.

35

D148958

LEVER

ROD Right Stabilizer

1шт.

36

D148959

LEVER

ROD Left Stabilizer

1шт.
