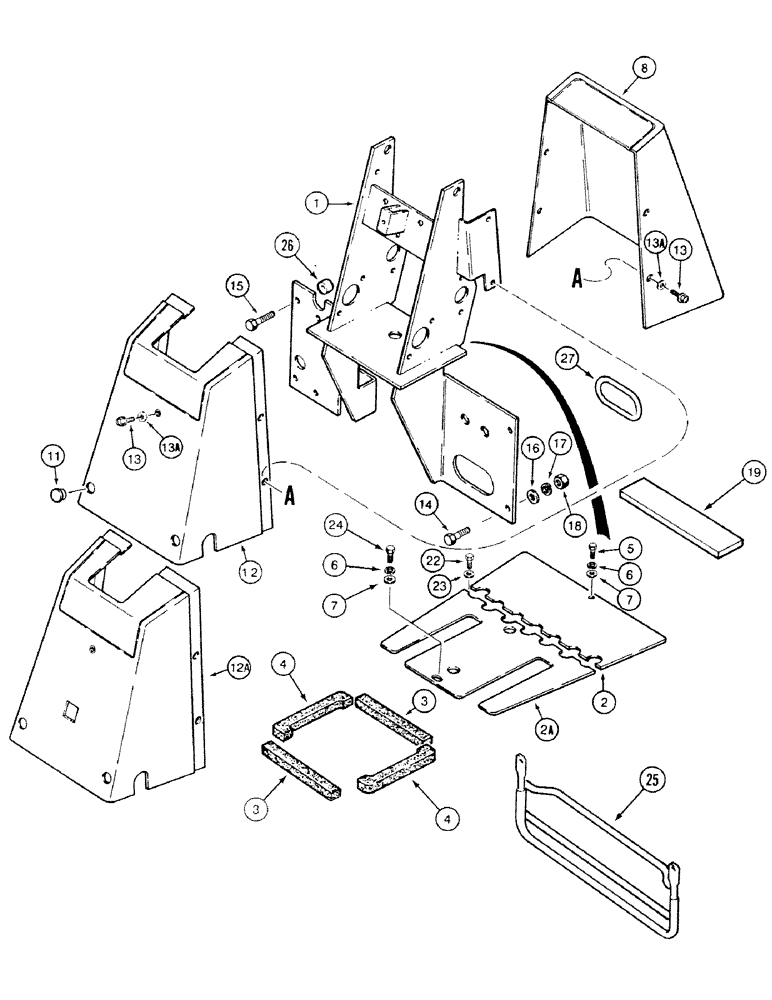

Запчасти Case 580SK (9-026) - BACKHOE CONTROL TOWER, NOT FOR PRESTIGE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D149477
SUPPORT
, Start Serial: JJH0045480
1шт.
1
113440A1
SUPPORT
, Serial Range: JJH0045481-JJH0046663
1шт.
1
113440A1
SUPPORT
, Serial Range: -JJH0046664
1шт.
2
E48508
PROTECTION PLATE
If so equipped
1шт.
2
E48500
PROTECTION PLATE
If so equipped
1шт.
3
D137902
GASKET
178 mm, If so equipped
1шт.
4
E48512
SEAL
If so equipped
1шт.
5
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
If so equipped
2шт.
7
495-11034
WASHER,5/16", SAE
If so equipped
2шт.
8
187435A1
COVER
Rear Grey
1шт.
8
D149669
COVER
Rear Tan
1шт.
11
353-411
PLUG,Dome, 1.000" hole, Nylon
2шт.
12
187434A1
COVER
Front Grey
1шт.
12
D149670
COVER
Front Tan Sideshift
1шт.
12
E49529
COVER
Front Tan Integral
1шт.
13
281-18712
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
5шт.
13
195-140
WASHER,1/4"
1/4"
4шт.
14
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
, Start Serial: JJH0045480
4шт.
14
413-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
1/2 x 70 mm, Serial Range: JJH0045481-JJH0046663
4шт.
14
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1/2 x 76 mm, Serial Range: -JJH0046664
2шт.
15
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
, Start Serial: JJH0045480
1шт.
15
413-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
1/2 x 70 mm, Serial Range: JJH0045481-JJH0046663
1шт.
15
413-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
1/2 x 70 mm, Serial Range: -JJH0046664
2шт.
16
495-11053
WASHER,1/2", SAE
4шт.
17
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
18
425-108
NUT,1/2" - 13, Gr 5
4шт.
19
E48499
DOOR COVER
PLATE If so equipped
1шт.
22
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
If so equipped
2шт.
23
195-81026
WASHER,.266" x 13/16" x .079"
17/64", If so equipped
2шт.
24
458-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
If so equipped
1шт.
25
127236A1
SUPPORT
, Serial Range: JJH0045481-JJH0046663
1шт.
26
E49953
SPACER
, Serial Range: JJH0045481-JJH0046663
4шт.
27
121363A1
LOOM
GUARD, Serial Range: JJH0045481-JJH0046663
2шт.
Выбрано товаров: 34
