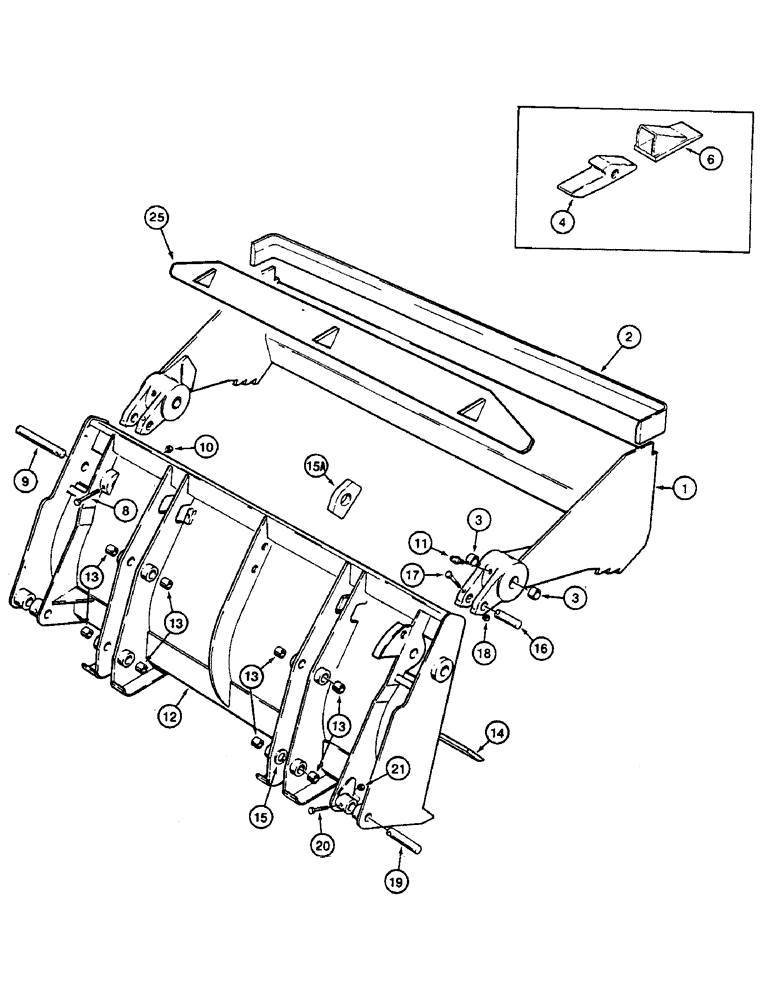

Запчасти Case 580SK (9-022) - 4 IN 1 CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

E48241

JAW

BUCKET 2362 mm With Teeth Consists of : 1 - 21

1шт.

E46858

JAW

BUCKET Consists of : 1 - 6

1шт.

1

CLAMP

1шт.

2

E35363

BLADE

EDGE Cutting

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

4

E48692

TIP

SHANK

7шт.

6

E46853

SUPPORT

POINT

7шт.

8

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

9

D51391

PIN,15mm OD x 74mm L

2шт.

10

131-652

LOCK NUT,3/8"-16, GB

3/8"

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

E47800

BLADE

Consists of : 12 - 15A

1шт.

12

BLADE

1шт.

13

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

14

E35701

BLADE

EDGE Cutting

1шт.

15

D135602

WASHER

1-5/8"

2шт.

15a

BRACKET

1шт.

16

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

17

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 83 mm

2шт.

18

131-652

LOCK NUT,3/8"-16, GB

3/8"

2шт.

19

D51393

PIN,31.72mm OD x 152.4mm L

1шт.

20

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

21

131-652

LOCK NUT,3/8"-16, GB

3/8"

2шт.

25

E48377

RISER

GUARD Spill

1шт.
