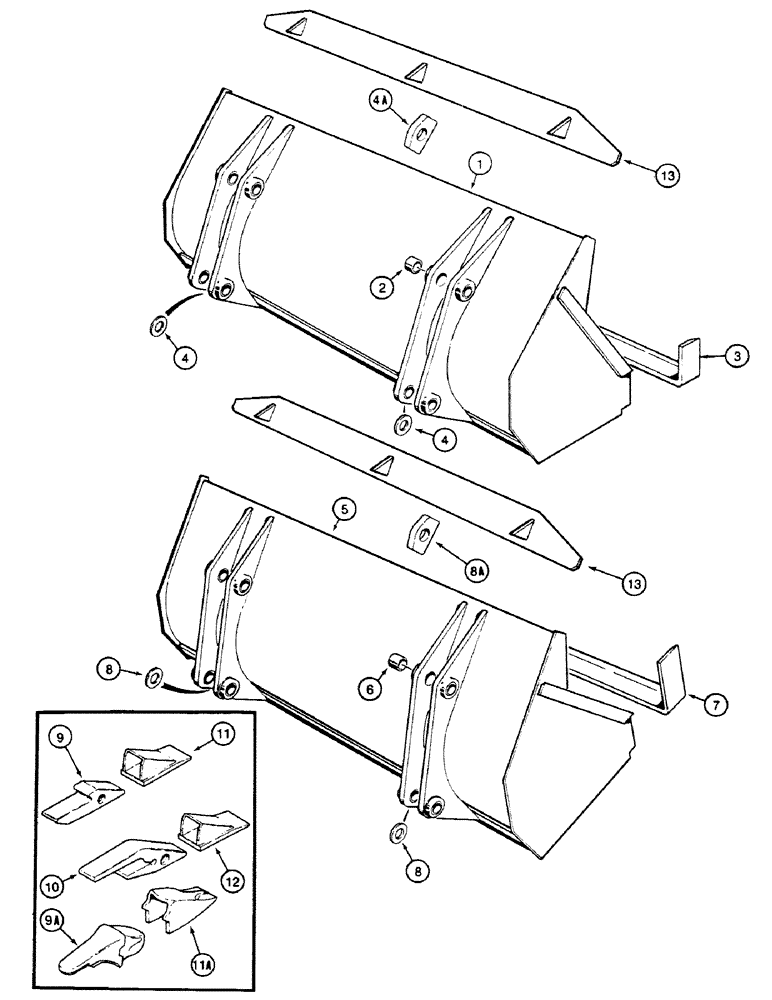

Запчасти Case 580SK (9-020) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

E46855

BUCKET

2285 mm With Teeth TY 17 Consists of : 1 - 4

1шт.

1

BUCKET

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

3

D65287

EDGE, CUTTING

1шт.

4

D135602

WASHER

41 mm

2шт.

4a

BRACKET

1шт.

13

E48377

RISER

GUARD Spill

1шт.

E46856

BUCKET

2362 mm With Teeth TY 17 Consists of : 5 - 8

1шт.

5

BUCKET

1шт.

6

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

7

E35363

BLADE

EDGE Cutting

1шт.

8

D135602

WASHER

41 mm

2шт.

8a

BRACKET

1шт.

13

E48377

RISER

GUARD Spill

1шт.

E46857

BUCKET

2362 mm With Teeth TY 17 Consists of : 5 - 8, Long Lip

1шт.

5

BUCKET Long Lip

1шт.

6

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

7

E35363

BLADE

EDGE Cutting

1шт.

8

D135602

WASHER

41 mm

2шт.

8a

E33862

LIFTING RING

BRACKET

1шт.

13

E48377

RISER

GUARD Spill

1шт.

9

D26368

SUPPORT

SHANK Bucket Teeth

1шт.

9a

E46853

SUPPORT

SHANK TY 17, Bucket Teeth

1шт.

10

D58499

SUPPORT

SHANK Heavy Duty, Bucket Teeth

1шт.

11

D27748

TOOTH

POINT

1шт.

11a

E46854

TOOTH

POINT TY 17

1шт.

12

D36720

TOOTH

POINT Heavy Duty

1шт.
