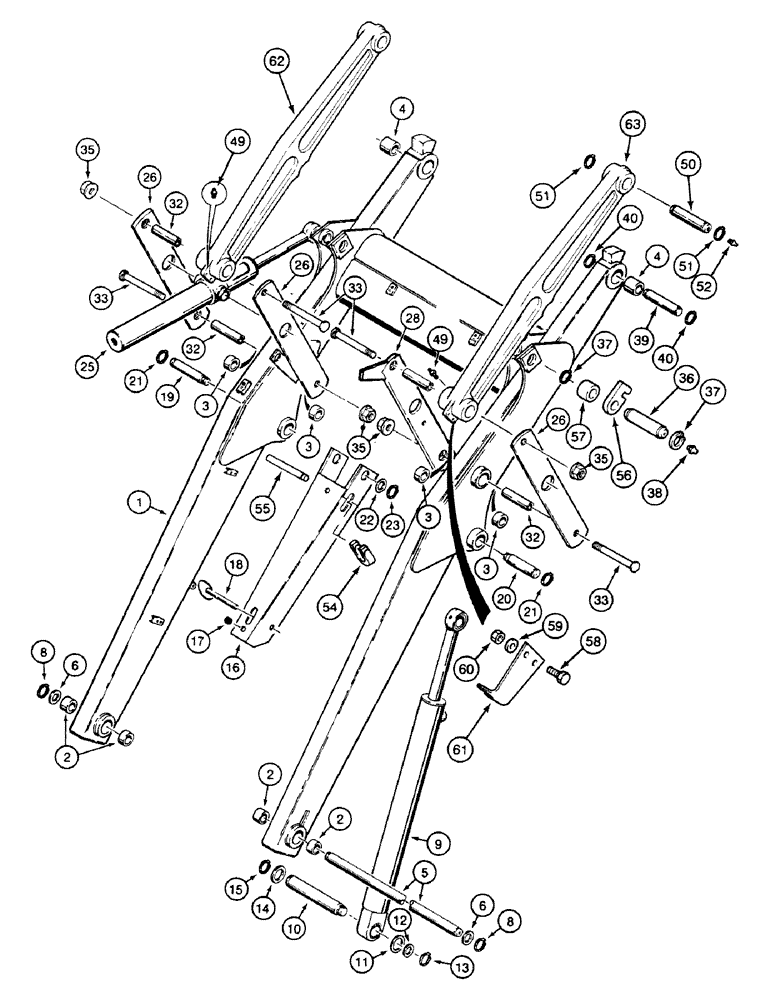

Запчасти Case 580SK (9-016) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

E49684

ARM

FRAME With : 2 - 4

1шт.

2

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

3

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

4шт.

4

D129240

BUSHING,40.23mm ID x 50mm OD x 70mm L

2шт.

5

111522A1

PIN,50mm OD x 1113.4mm L

SHAFT

1шт.

6

495-81282

WASHER,2 1/16" x 3" x .109"

2шт.

8

800-44050

SNAP RING,M50, Ext

Retaining

2шт.

9

1980220C2

CYLINDER ASSY.

, Serial Range: -JJH0013528

2шт.

9

1542743C1

CYLINDER ASSY.

See Figure 8-352, Serial Range: JJH0013529-JJH0045940

2шт.

9

110857A1

CYLINDER ASSY.

See Figure 8-352, Start Serial: JJH0045941

2шт.

10

D135669

PIN,50mm OD x 277mm L

Left

2шт.

11

D143431

WASHER

2шт.

12

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

13

103-16175

SNAP RING,#175, Ext

2шт.

14

495-81282

WASHER,2 1/16" x 3" x .109"

(52 x 76 x 3 mm)

2шт.

15

103-16175

SNAP RING,#175, Ext

2шт.

16

E48954

SUPPORT

STRUT

1шт.

17

D121047

GROMMET

1шт.

18

104824A1

PIN,12.7mm OD

1шт.

19

D135603

PIN,40mm OD x 178mm L

Left

1шт.

20

D135604

AXLE PIN,40mm OD x 152mm L

Right

1шт.

21

800-44040

SNAP RING,M40, Ext

Retaining

2шт.

22

495-81294

WASHER,1.44" ID x 2" OD x 0.07" Thk

37 x 51 x 2 mm

2шт.

23

800-44035

SNAP RING,M35, Ext

Retaining

2шт.

25

G108486

CYLINDER ASSY.

Right See Figure 8-354, Serial Range: -JJH0046190

1шт.

25

110306A1

CYLINDER ASSY.

Right See Figure 8-354, Start Serial: JJH004619

1шт.

25

G108487

CYLINDER ASSY.

Left See Figure 8-354, Serial Range: -JJH0046190

1шт.

25

110309A1

CYLINDER ASSY.

Left See Figure 8-354, Start Serial: JJH004619

1шт.

26

120658A1

PITMAN

LINK

3шт.

28

120659A1

PITMAN

LINK

1шт.

32

E49741

SPACER

BUSHING

4шт.

33

416-12116

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 7 1/4", Gr 8

3/4 in x 184 mm

4шт.

35

131-935

FLANGE NUT,Flg, 3/4"-10, G8

1"

4шт.

36

D148065

PIN,40mm OD x 121mm L

2шт.

36

D148065

PIN,40mm OD x 121mm L

Use With : E47416 or E47417

1шт.

36

E47624

PIN

Use With : E47416 or E47417

1шт.

37

800-44040

SNAP RING,M40, Ext

Retaining

4шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

39

177272A1

PIN

2шт.

40

800-44040

SNAP RING,M40, Ext

Retaining

4шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

50

177273A1

PIN

2шт.

50

177273A1

PIN

Use With : E47416 or E47417

1шт.

50

E47629

PIN

Use With : E47416 or E47417

1шт.

51

800-44040

SNAP RING,M40, Ext

Retaining

4шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

54

E47405

PROFILE

BRACKET Use With : E48954

1шт.

55

D140855

PIN,15.88mm OD

Use With : E48954

1шт.

56

E47416

HOOK

BRACKET Bucket Italy Only

1шт.

56

E47417

HOOK

BRACKET 4-In-1 Bucket Italy Only

1шт.

57

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

SPACER

1шт.

57

E48949

SPACER

Italy Only

1шт.

58

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 29 mm

2шт.

59

492-11031

LOCK WASHER,5/16"

2шт.

60

425-105

NUT,5/16"-18, G5

2шт.

61

D121194

POINTER

1шт.

62

D144558

PITMAN

LINK

1шт.

63

D139595

PITMAN

LINK

1шт.
