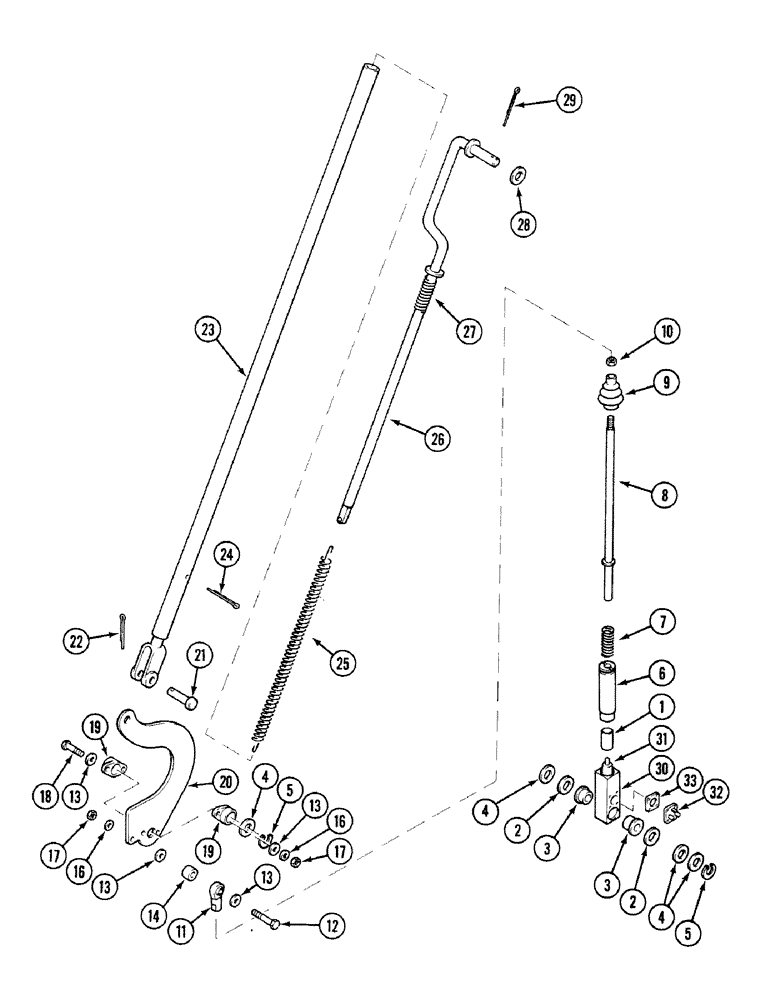

Запчасти Case 580SK (9-014) - ANTI-ROLLBACK, SERVOPOWER VERSION, S/N JJH0046382 AND UP (09) - CHASSIS/ATTACHMENTS

1

138370A1

POTENTIOMETER

Spacer

1шт.

2

127705A1

SPACER

1шт.

3

113439A1

BUSHING

2шт.

4

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

5

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

CIRCLIP

2шт.

6

113481A1

GUIDE

1шт.

7

113438A1

SPRING

1шт.

8

113401A1

ROD

1шт.

9

D85869

BELLOWS

BOOT

1шт.

10

425-116

NUT,3/8" - 24, Gr 5

1шт.

11

D136773

BALL JOINT

3/8"

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

14

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

BEARING

1шт.

16

492-11038

LOCK WASHER,3/8"

3шт.

17

425-106

NUT,3/8"-16, Cl 5

3шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BUSHING

1шт.

20

D150134

ARM

1шт.

21

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

1шт.

23

D149881

TUBE

1шт.

24

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

25

D145098

SPRING

1шт.

26

D149882

ROD

1шт.

27

D140612

SPRING

1шт.

28

495-11053

WASHER,1/2", SAE

1шт.

29

432-816

COTTER PIN,1/8" x 1"

1шт.

113864A1

POTENTIOMETER

Support, Consists Of 30 - 34

1шт.

30

113482A1

SUPPORT

1шт.

31

138370A1

POTENTIOMETER

1шт.

32

113863A1

MAKING-UP

BASE

1шт.

33

113862A1

GASKET

1шт.
