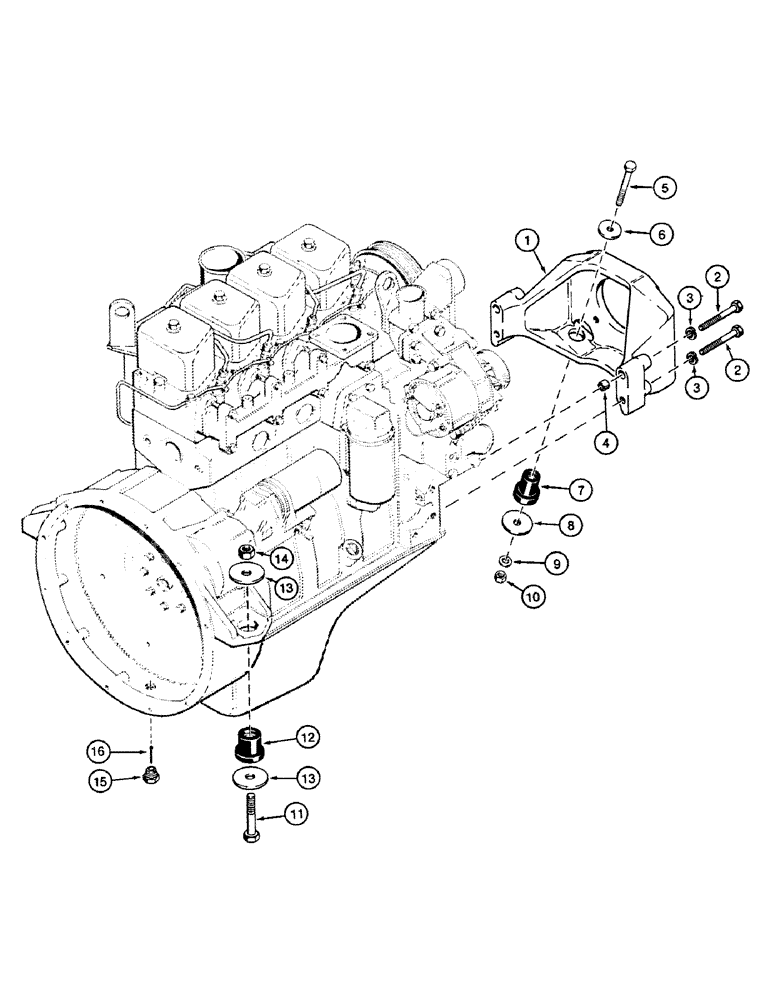

Запчасти Case 580SK (2-22) - ENGINE MOUNTING (02) - ENGINE

1

D123725

SUPPORT

1шт.

2

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

BOLT M12 x 85 mm

4шт.

3

892-1112

LOCK WASHER,M12

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

2шт.

5

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1/2 x 70 mm

2шт.

6

D126338

WASHER,13.1mm ID x 45mm OD x 4.5mm Thk

2шт.

7

D60627

ISOLATOR,50.8mm OD x 41.1mm L

INSULATOR

2шт.

8

195-2055

WASHER,17/32" x 2 1/4" x .180"

17/32"

2шт.

9

195-533

WASHER,1/2", SAE

2шт.

10

231-1448

NUT,1/2"-13, GB

2шт.

11

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

12

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR

2шт.

13

CASD35009

WASHER,16.67mm ID x 63.5mm OD

4шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

L113178

PLUG

3/4"

1шт.

16

32-1416

COTTER PIN,7/32" x 1"

1шт.
