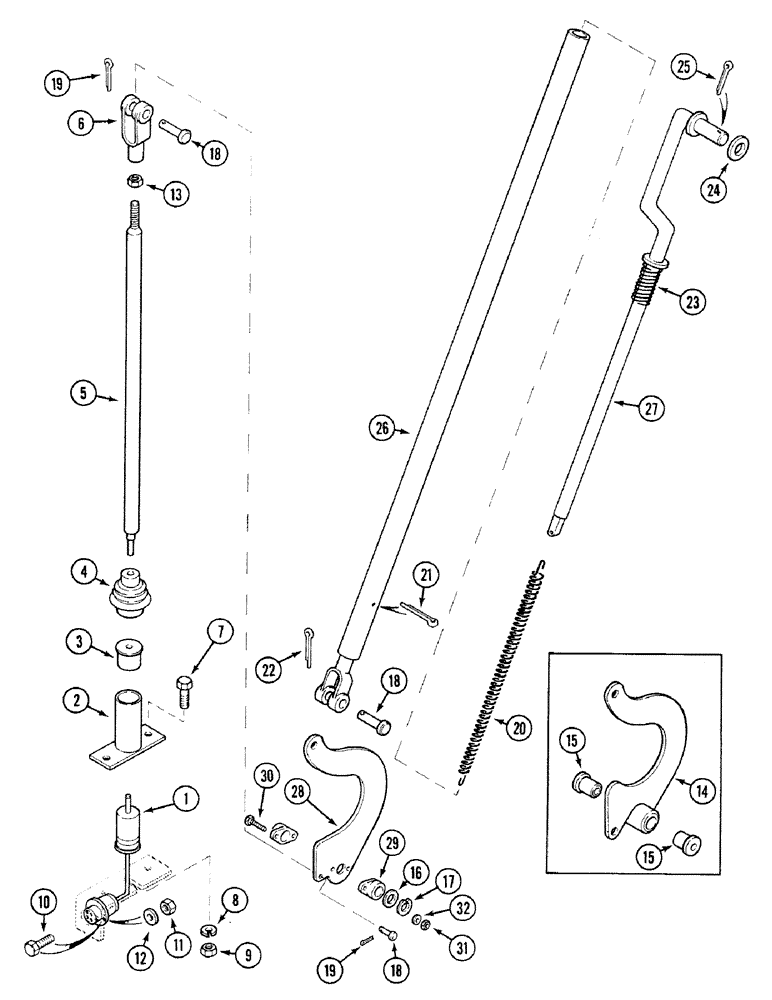

Запчасти Case 580SK (9-012) - ANTI-ROLLBACK, PRESTIGE VERSION (09) - CHASSIS/ATTACHMENTS

1

E48324

POTENTIOMETER

1шт.

2

E49502

SUPPORT

1шт.

3

E48988

BUSHING

Guide

1шт.

4

D85869

BELLOWS

BOOT

1шт.

5

E55082

ROD

1шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

492-11025

LOCK WASHER,1/4"

2шт.

9

425-104

NUT,1/4"-20, Cl 5

1/2"

2шт.

10

E48861

SCREW

3 x 14 mm

2шт.

11

825-1403

NUT,M3, Cl 8

2шт.

12

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

2шт.

13

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

14

E49675

ARM

LEVER, Start Serial: JJH0045281

1шт.

15

D124452

BUSHING

, Start Serial: JJH0045281

2шт.

16

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

17

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

Retaining 3/4"

1шт.

18

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

19

432-610

COTTER PIN,3/32" x 5/8"

1шт.

20

D145098

SPRING

1шт.

21

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

1шт.

23

D140612

SPRING

1шт.

24

495-11053

WASHER,1/2", SAE

1шт.

25

432-816

COTTER PIN,1/8" x 1"

1шт.

26

D149881

TUBE

1шт.

27

D149882

ROD

1шт.

28

D150134

ARM

, Serial Range: -JJH0046381

1шт.

29

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BUSHING, Serial Range: -JJH0046381

2шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

, Serial Range: -JJH0046381

2шт.

31

425-106

NUT,3/8"-16, Cl 5

, Serial Range: -JJH0046381

2шт.

32

492-11038

LOCK WASHER,3/8"

, Serial Range: -JJH0046381

2шт.
