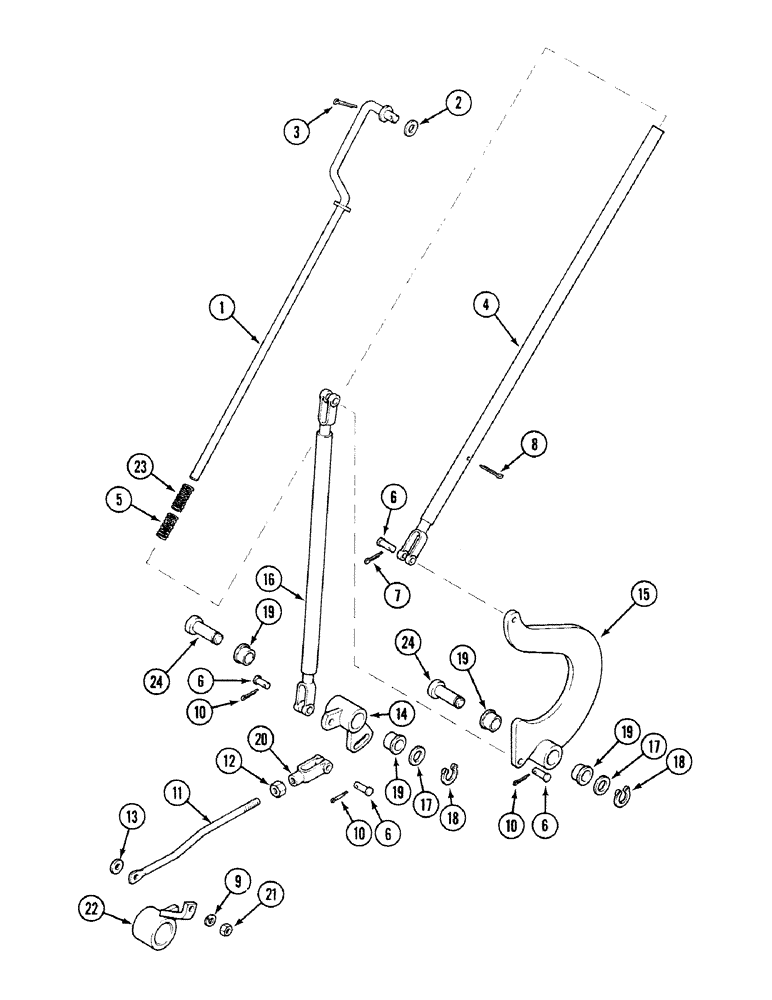

Запчасти Case 580SK (9-008) - LOADER ANTI-ROLLBACK CONTROL, NOT FOR PRESTIGE, S/N JJH0045281 (09) - CHASSIS/ATTACHMENTS

1

D149882

ROD

1шт.

2

495-11053

WASHER,1/2", SAE

1шт.

3

432-816

COTTER PIN,1/8" x 1"

1шт.

4

D149881

TUBE

1шт.

5

D145098

SPRING

1шт.

6

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

4шт.

7

432-612

COTTER PIN,3/32" x 3/4"

1шт.

8

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

432-610

COTTER PIN,3/32" x 5/8"

1шт.

11

E49754

ROD

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

1шт.

13

495-21038

WASHER,5/16"

1шт.

14

D149993

DRIVE, ANGLE

LEVER

1шт.

15

E49675

ARM

1шт.

16

E48944

ROD

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

retaining

2шт.

19

D124452

BUSHING

4шт.

20

E49755

CLEVIS

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

E48945

LEVER

See Figure 9-002

1шт.

23

D140612

SPRING

1шт.

24

D145147

PIN

2шт.
