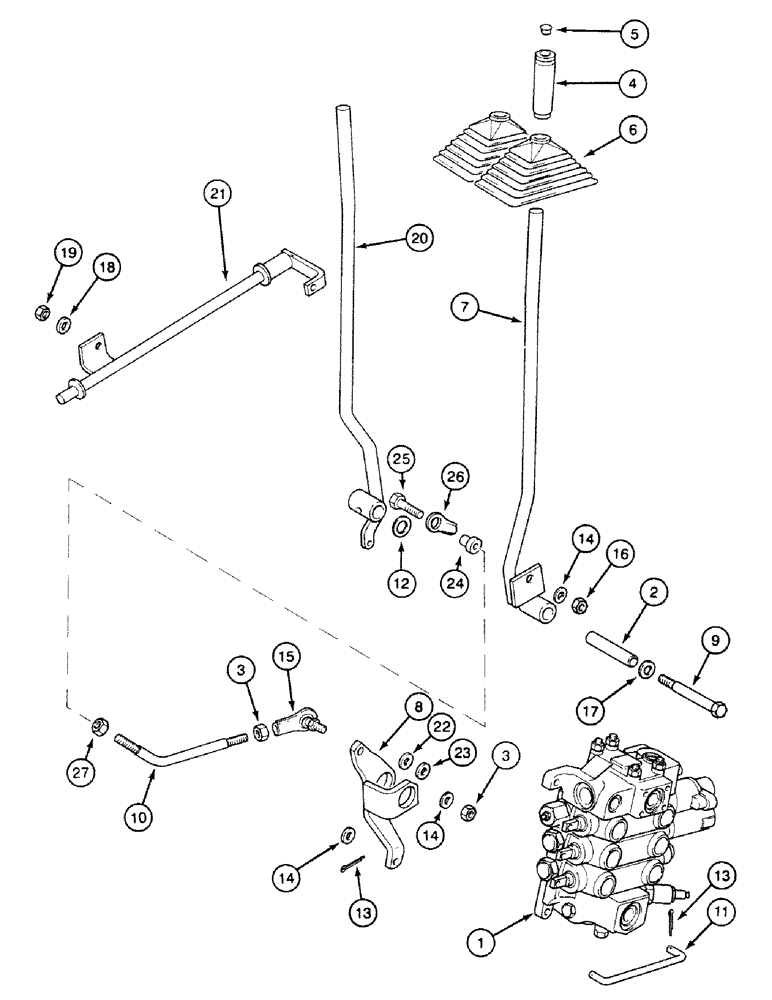

Запчасти Case 580SK (9-006) - LOADER CONTROLS, 4 IN 1 CLAM, NOT FOR PRESTIGE (09) - CHASSIS/ATTACHMENTS

1

1980433C1

DISTRIBUTOR

VALVE ASSY Control 3 Spool See Figure 8-318

1шт.

2

E49750

SPACER

BUSHING

1шт.

3

425-116

NUT,3/8" - 24, Gr 5

2шт.

4

D147443

HANDLE

KNOB

1шт.

5

353-406

PLUG,Dome, .625" hole, Nylon

M16

1шт.

6

D137465

BOOT

1шт.

7

E49626

LEVER ASSY.

1шт.

8

E48943

DRIVE, ANGLE

BELLCRANK

1шт.

9

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1/2 x 108 mm

1шт.

10

E49753

ROD

1шт.

11

D149038

PITMAN

ROD

1шт.

12

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

lock

3шт.

13

432-612

COTTER PIN,3/32" x 3/4"

2шт.

14

495-21044

WASHER,3/8"

3шт.

15

R47940

BALL JOINT

3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

18

495-11053

WASHER,1/2", SAE

1шт.

19

131-208

SPECIAL NUT,1/2"-13

1/2"

1шт.

20

E49624

CONTROL LEVER

See Figure 9-002

1шт.

21

E48915

SHAFT

See Figure 9-002

1шт.

22

E49762

WASHER

1 mm

1шт.

23

E49763

WASHER

1.5 mm

1шт.

24

E49764

SPACER

, Serial Range: -JJH0016175

1шт.

24

E55006

TRANSMISSION SLEEVE

SPACER, Start Serial: JJH0016176

1шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

26

E47973

BALL JOINT

KNUCKLE

1шт.

27

425-118

NUT,1/2"-20, G5

1шт.
