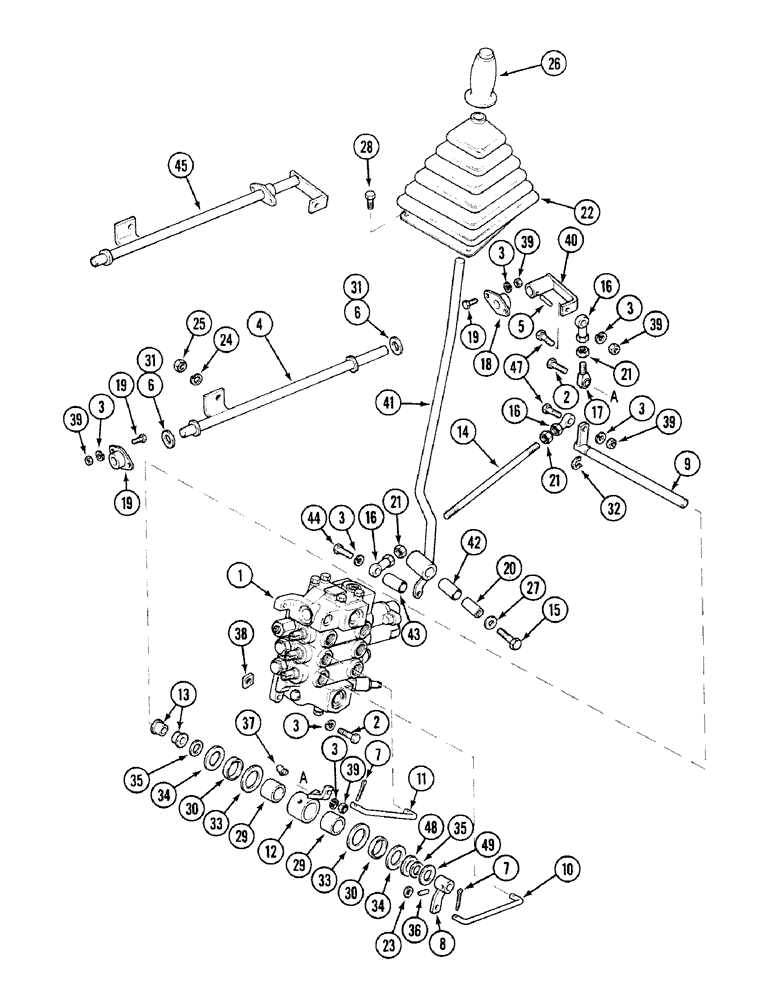

Запчасти Case 580SK (9-002) - LOADER CONTROLS, LIFT AND BUCKET, NOT FOR PRESTIGE (09) - CHASSIS/ATTACHMENTS

1

1340864C1

VALVE, CONTROL

ASSY See Figure 8-316 2 Spool

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

10шт.

4

SHAFT Order : E49645

1шт.

5

438-11216

LOCK PIN,3/16" x 1", Slotted

3/16 x 25 mm, Serial Range: -JJH0013304

1шт.

6

495-81182

WASHER,21/32" x 1 1/4" x .060"

21/32"

2шт.

7

432-616

COTTER PIN,3/32" x 1"

4шт.

8

E48946

LEVER

BELLCRANK

1шт.

9

D149802

SHAFT

1шт.

10

D148826

PITMAN

ROD

1шт.

11

D149297

PITMAN

ROD

1шт.

12

E48945

LEVER

1шт.

13

E49568

BUSHING

2шт.

14

D149518

ROD

1шт.

15

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 76 mm

1шт.

15

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 64 mm

1шт.

16

S108030

JOINT

ball, Serial Range: -JJH0013304

3шт.

16

D136773

BALL JOINT

, Start Serial: JJH0013305

3шт.

17

D144606

BALL JOINT

1шт.

18

L15401

BEARING,15.89mm ID

, Serial Range: -JJH0013304

2шт.

18

L15401

BEARING,15.89mm ID

, Start Serial: JJH0013305

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

E49749

SPACER

SLEEVE

1шт.

21

425-116

NUT,3/8" - 24, Gr 5

3шт.

22

D137466

BOOT

1шт.

23

495-21038

WASHER,5/16"

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

131-208

SPECIAL NUT,1/2"-13

1/2"

1шт.

26

D147443

HANDLE

KNOB

1шт.

27

495-11053

WASHER,1/2", SAE

1шт.

28

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

4шт.

29

CASE49569

BUSHING

2шт.

30

D149361

SPACER

2шт.

31

495-81184

WASHER,21/32" x 1 1/2" x .030"

21/32"

2шт.

32

D143591

RING, SNAP,12.7mm ID, Ext

RING SNAP

1шт.

33

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

1-17/32"

2шт.

34

495-81204

WASHER,1 9/32" x 2" x .036"

1-9/32"

2шт.

35

103-16125

SNAP RING,#125, Ext

2шт.

36

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

1/4 x 32 mm

1шт.

37

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Union

1шт.

38

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

39

425-106

NUT,3/8"-16, Cl 5

6шт.

40

E48920

DRIVE, ANGLE

BELLCRANK

1шт.

41

E49624

CONTROL LEVER

ASSY

1шт.

42

E48912

BUSHING

If so equipped

1шт.

43

D76208

SPACER

1шт.

44

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Use with S108030

1шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Use with D136773

1шт.

45

E49645

CONTROL LEVER

SHAFT

1шт.

47

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Use with D136773

2шт.

47

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Use with S108030

2шт.

48

E49761

WASHER

1шт.

49

E49759

WASHER

1 mm

1шт.

49

E49760

WASHER

1,5 mm

1шт.
