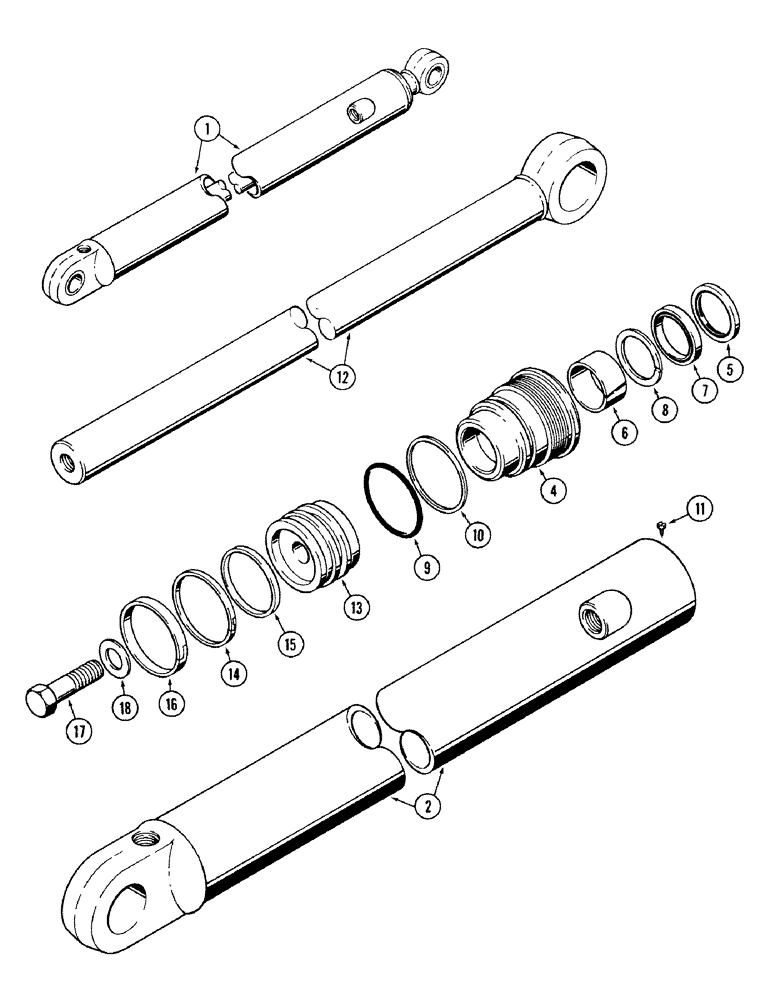

Запчасти Case 580SK (8-380) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

1340969C1

CYLINDER ASSY.

76 x 1068 mm Consists of : 2 - 18

1шт.

1543267C1

SEAL KIT

Consists of 5 - 10,14,15,16

1шт.

2

1340970C1

TUBE,76.1mm Bore Dia

1шт.

G109885

GLAND

ASSY Consists of : 4 - 10

1шт.

4

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1980296C1

PISTON ROD

44 mm Dia

1шт.

13

G107277

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

3/4"

1шт.
