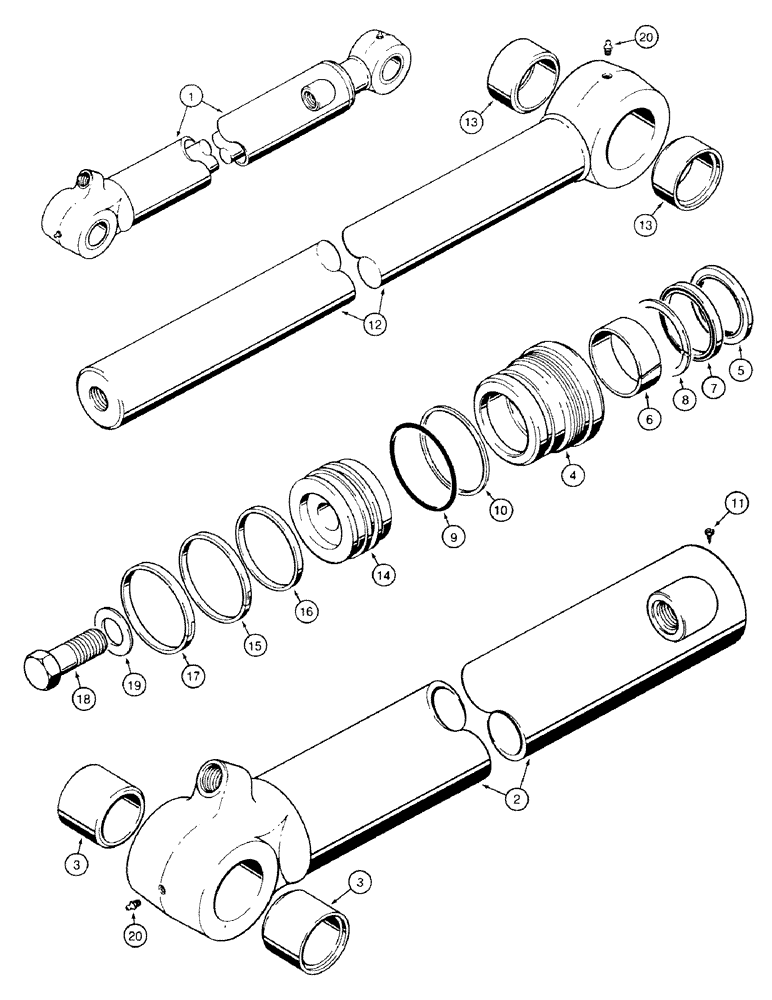

Запчасти Case 580SK (8-378) - BACKHOE BUCKET CYLINDER, S/N JJH0014400 AND UP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1542920C1
CYLINDER ASSY.
89 x 872 mmConsists of : 2 - 20, Serial Range: JJH0014400-JJH0046190
1шт.
1
235916A1R
REMAN-HYD CYLINDER
Reman New PN 1542920C1
1шт.
1
235916A1C
CORE-HYD CYLINDER
Return Number
1шт.
1
110290A1
CYLINDER ASSY.
89 x 872 mm Consists of : 2A,4 - 12,14 - 20, Start Serial: JJH0046191
1шт.
1
235916A1R
REMAN-HYD CYLINDER
Reman New PN 110290A1
1шт.
1
235916A1C
CORE-HYD CYLINDER
Return Number
1шт.
2
1542656C1
TUBE,88.77 mm ID, 1086.9 mm Length
TUBE ASSY With : 3
1шт.
2a
110292A1
TUBE,50 mm ID, 1086.9 mm Length
TUBE ASSY Use With : 110290A1
1шт.
3
D141555
BUSHING,50.19mm ID x 60mm OD x 40mm L
2шт.
1542921C1
GLAND
ASSY With : 4 - 10
1шт.
4
1542922C1
GLAND
1шт.
5
D95146
WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
1шт.
Part of seals package P/N 1542923C1
1шт.
6
G109908
BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L
1шт.
Part of seals package P/N 1542923C1
1шт.
7
SEAL
1шт.
8
SEAL
1шт.
Part of seals package P/N 1542923C1
1шт.
10
D38858
BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk
1шт.
Part of seals package P/N 1542923C1
1шт.
11
86642312
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
No.8 x 10 mm
1шт.
12
1542658C1
PISTON ROD
ASSY 64 mm With : 13
1шт.
13
D140029
BUSHING,50.22mm ID x 60mm OD x 25.5mm L
2шт.
14
G107403
PISTON
1шт.
15
G102286
SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk
1шт.
Part of seals package P/N 1542923C1
1шт.
16
G100710
RING,Square, 5.28mm Thk x 75.31mm ID
1шт.
Part of seals package P/N 1542923C1
1шт.
17
G100711
SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
1шт.
Part of seals package P/N 1542923C1
1шт.
18
28-2052
BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8
1шт.
19
G104989
WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk
1-1/4"
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
1542923C1
SEAL KIT
Includes: Ref. 5, 6, 9, 10, 15, 16 and 17
1шт.
Выбрано товаров: 35
