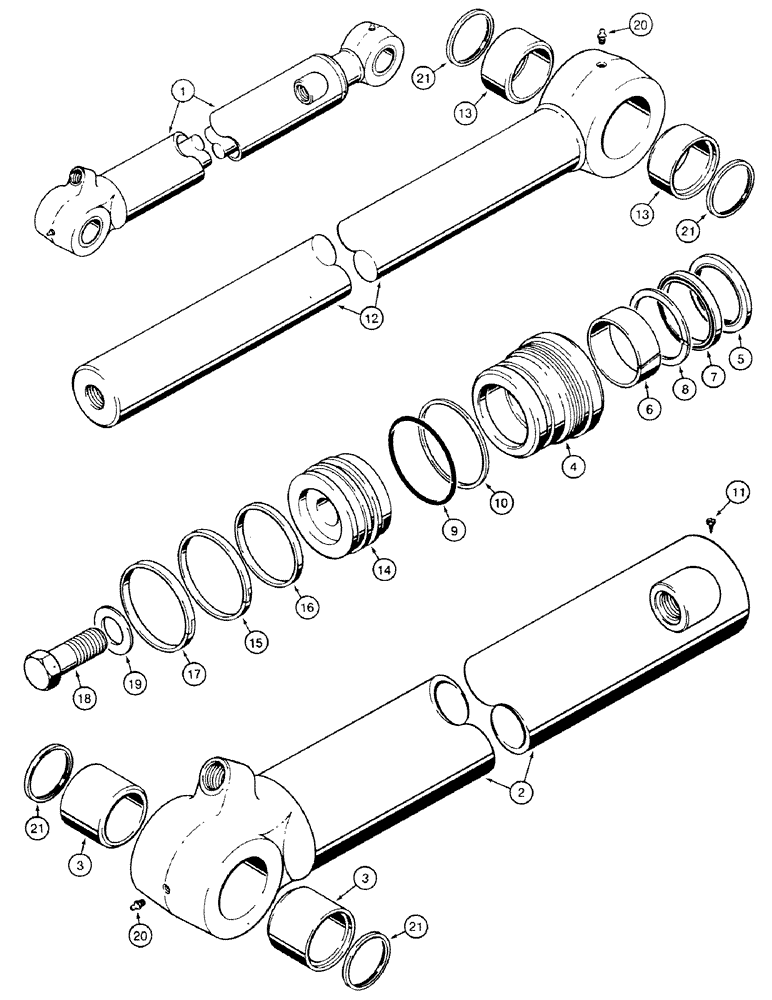

Запчасти Case 580SK (8-376) - BACKHOE BUCKET CYLINDER, UP TO S/N JJH0014399 (08) - HYDRAULICS

1

1340991C1

CYLINDER ASSY.

89 x 872 mm With : 2 - 21

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

G110046

KIT

Seal Consists of : 5 - 10,15,16,17

1шт.

2

1340992C1

TUBE

With : 3

1шт.

3

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

2шт.

G109894

GLAND

ASSY Consists of : 4 - 10

1шт.

4

GLAND

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

1шт.

9

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

No.8 x 10 mm

1шт.

12

1341854C1

PISTON ROD

ASSY 64 mm Dia With : 13

1шт.

13

G108525

BUSHING,50.19mm ID x 66.68mm OD x 30mm L

2шт.

14

G107403

PISTON

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

4шт.
