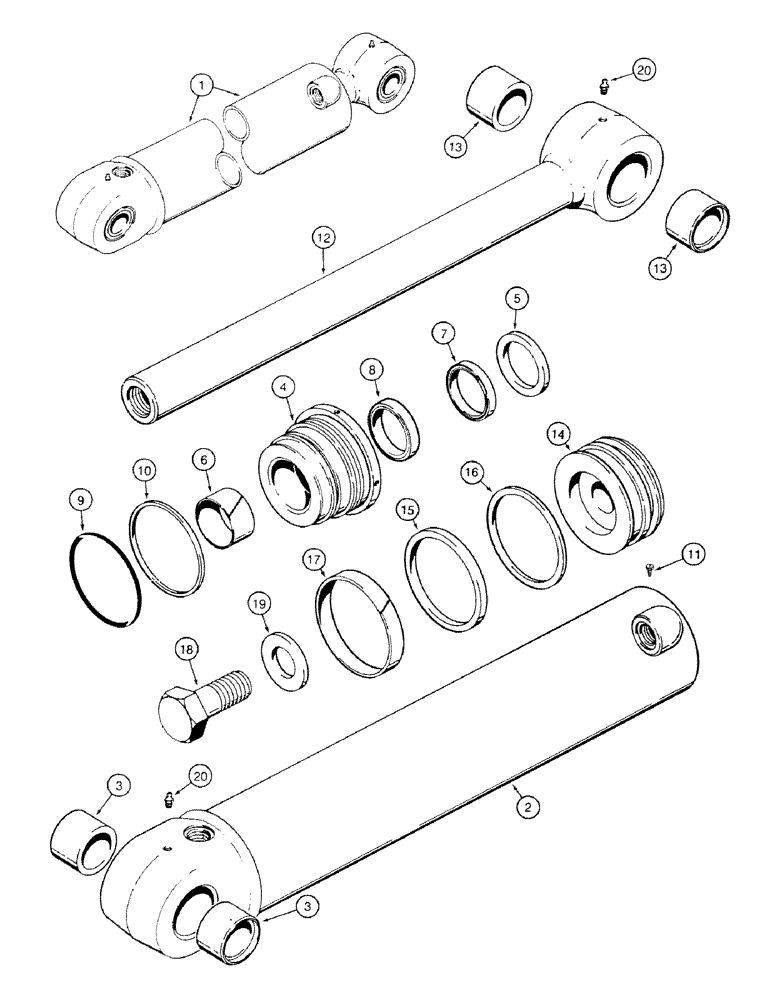

Запчасти Case 580SK (8-374) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

1542912C1

CYLINDER ASSY.

127 x 583 mm Consists of : 2 - 20, Serial Range: JJH0014389-JJH0046126

1шт.

1

110294A1

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke

Consists of : 2A,4 - 20, Start Serial: JJH0046127

1шт.

2

1542664C1

TUBE

TUBE With : 3, Serial Range: JJH0014389-JJH0046126

1шт.

2a

110295A1

TUBE,126.77mm Bore Dia

TUBE, Start Serial: JJH0046127

1шт.

3

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

, Serial Range: JJH0014389-JJH0046126

2шт.

1542913C1

GLAND

ASSY With : 4 - 10

1шт.

4

1542914C1

GLAND,127mm Bore, 63.5mm Rod, 91.8mm W

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

includes ref 7 and 8

1шт.

7

SEAL in kit above

1шт.

8

SEAL in kit above

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

No.8 x 10 mm

1шт.

12

1542665C1

PISTON ROD

ASSY 64 dia With : 13

1шт.

13

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

2шт.

14

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

1шт.

15

G102091

SEAL,128.52mm OD x 6.96mm Thk

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

17

G102090

RING,127mm OD, Ext

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

1-1/2 x 85 mm

1шт.

19

G104990

WASHER

1-1/2"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
