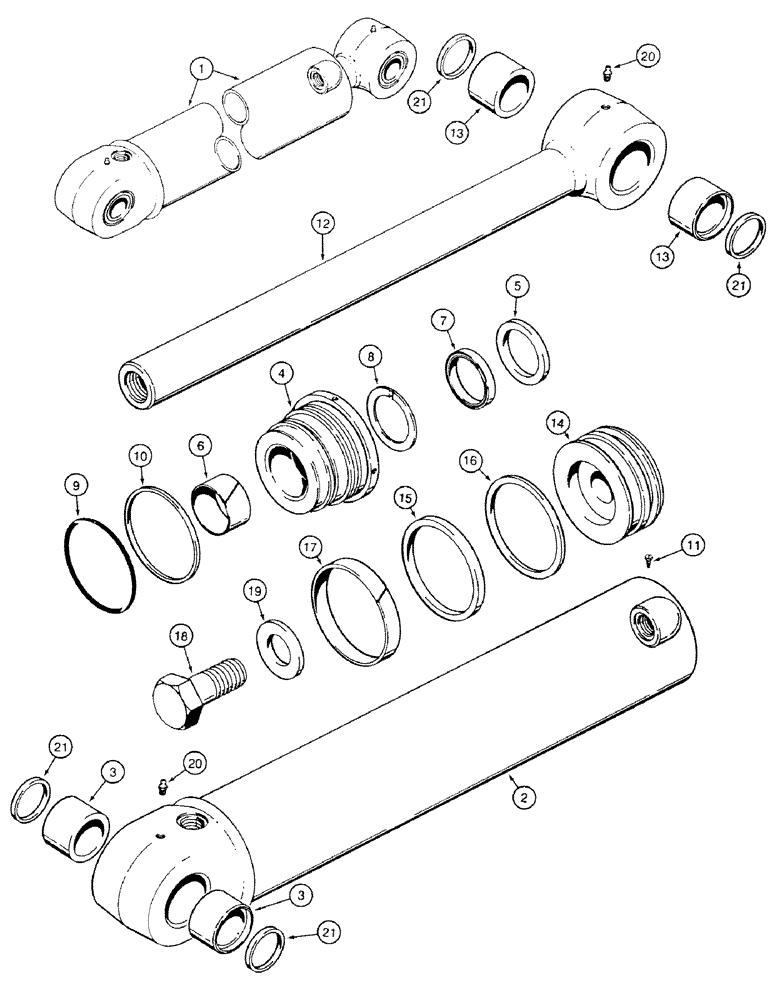

Запчасти Case 580SK (8-372) - BACKHOE DIPPER CYLINDER, UP TO S/N JJH0014388 (08) - HYDRAULICS

1

1340984C1

CYLINDER ASSY.

127 x 583 mm Consists of : 2 - 21

1шт.

G110582

KIT

Seal Consists of : 5 - 10,15,16,17

1шт.

2

1340985C1

TUBE

With : 3

1шт.

3

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

2шт.

G110687

GLAND

Assy. Consists of : 4 - 10

1шт.

4

GLAND

1шт.

5

G108713

WIPER,63.45mm ID x 82.58mm OD x 10.03mm Thk

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

1шт.

9

39738

O-RING,4.609" ID x 0.139" Width

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

No.8 x 10 mm

1шт.

12

1341853C1

PISTON ROD

ASSY 64 mm Dia With : 13

1шт.

13

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

2шт.

14

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

1шт.

15

G102091

SEAL,128.52mm OD x 6.96mm Thk

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

17

G102090

RING,127mm OD, Ext

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

1-1/2 x 85 mm

1шт.

19

G104990

WASHER

1-1/2"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

4шт.
